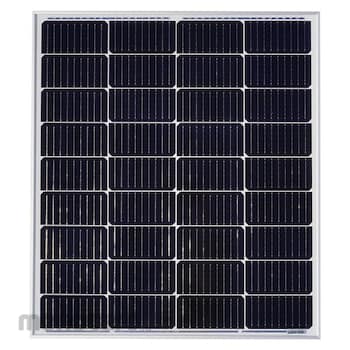

GRAPE SOLAR Solar Panel
#Grup produk P109909400
Spesifikasi
| UNSPSC | 60104701 |
|---|---|
| Cable Length (inch) | 35 3/8 |
| Cell Type | Monocrystalline |
| Connector | 4mm PV |
| Depth (inch) | 1 19/50 |
| Frame | Yes |
| Height (inch) | 31 89/100 |
| Max. System Voltage (VDC) | 600 (UL) |
| Module Efficiency | 17.3 % |
| Nominal Output Power (W) | 100 |
| Number of Cells | 36 |
| Open Circuit Voltage (V) | 23.1 |
| Operating Temperature Range (°F) | -40 to 185 |
| Panel Max. Power Point Current (A) | 5.23 |
| Panel Max. Power Point Voltage (V) | 19.12 |
| Power Tolerance | 0% to +6% |
| Short Circuit Current (A) | 5.59 |
| Standards | CE |
| Width (inch) | 28 3/20 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Grape Solar solar panels use sunlight (a renewable source of energy) to power commercial and residential buildings as well as lighting, gates, and electric fences. They are effective in environments with high temperatures and weak light. The panels' frames are designed to withstand wind and snow loads up to 50 lb./sq. ft.
Feature
Solar Panel Cell Type Monocrystalline Nominal Output Power 100 W Number of Cells 36 Panel Max Power Point Voltage 19.12V DC Panel Max Power Point Current 5.23 A Power Tolerance 0 Percent to +6 Percent Open Circuit Voltage 23.1V DC Short Circuit Current 5.59 A Max System Voltage 600V DC (UL) Cable Length 35 3/8 in Connector 4mm PV Frame Yes Weight 15.4 lb Height 31 89/100 in Width 28 3/20 in Depth 1 19/50 inUlasan Produk
