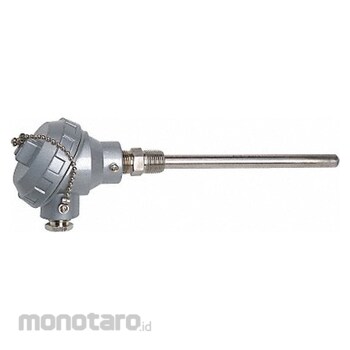

TEMPCO Threaded RTD Prob
#Grup produk P109674054
Sebelum PPN:
Rp2.799.900 - Rp3.299.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| UNSPSC | 41112206 |
|---|---|
| Accuracy (°C) | ±0.15/±0.06 ohm at 0 |
| Brand | TEMPCO |
| Connector Type | Connection Head with Terminal Block |
| Fitting Type (inch) | 1/2 MNPT |
| For Air | Yes |
| For Application | AppliancesDuctFood and BeverageHVACOvensPackagingPharmaceutical |
| For Gases | Yes |
| For Liquids and Gels | Yes |
| For Solids | Yes |
| For Surfaces | No |
| Head Connection (inch) | 1/2 MNPT |
| Head Material | Aluminium |
| Includes Signal Converter | No |
| Includes Thermowell | No |
| Maximum Temperature (°C) | 200 |
| Maximum Temperature (°F) | 392 |
| Minimum Temperature (°C) | -18 |
| Minimum Temperature (°F) | 0 |
| Number of wires | 3-Wire |
| Probe Bend | Straight |
| Probe Diameter (inch) | 0.25 |
| Probe Sheath Material | 316 Stainless Steel |
| Process Mounting (inch) | 1/2 NPT |
| Resistance (ohm) | 100 |
| Rtd Type | 3-Wire Pt100 |
| Sensor Type | RTD |
| Temperature Range (°C) | -18 to 200 |
| Temperature Range (°F) | 0 to 392 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These RTD probes have a heavy-duty protective head with a conduit connection with screw terminals rather than an integral cable and leads. The conduit connection is typically positioned at 90° from the probe connection itself.
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya - Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada websiteFeature
K3180 Temperature Probe RTD Type 3-Wire Pt100 For Application Appliances Duct Food and Beverage HVAC Ovens Packaging Pharmaceutical Number of Wires 3-Wire 1/2 in NPT Connection Head with Terminal Block 1/2 in MNPT 0 Degrees to 392 Degrees F/-18 Degrees to 200 Degrees CUlasan Produk
