Dwyer Photohelic Differential Pressure Gage
#Grup produk P109124258
Sebelum PPN:
Rp27.999.900 - Rp29.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Service | Air and non-combustible, compatible gases |
|---|---|
| Wetted Materials | Consult Factory |
| Accuracy | ±2% of FS at 70°F (21.1°C). ±3% on -0 and ±4% on -00 models. |
| Pressure Limits (bar) | -0.677 to 1.72 |
| Agency Approvals | CE, CSA, UL |
| Dial size (mm) | 4 |
| Electrical Connections | Screw terminals. Use 75°C copper conductors only |
| Electrical Rating (A) | 10 @ 28VDC, 10 @ 120, 240VAC |
| Mounting Orientation | Diaphragm In Vertical Position Consult Factory For Other Position Orientations |
| Outer Size (mm) | 5x8 1/4 |
| Power Requirements (VAC) | 120, 50/60 Hz; 240 & 24 power optional |
| Process Connections (inch) | 1/8 NPT (Female) |
| Repeatability | ±1% of FS |
| Set Point Adjustment | Adjustable Knobs On Face |
| Switch Type | Each setpoint has 2 Form C relays (DPDT) |
| Temperature Limit (°C) | -6.67 to 48.9. (-28 to 48.9) with low temperature option. |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

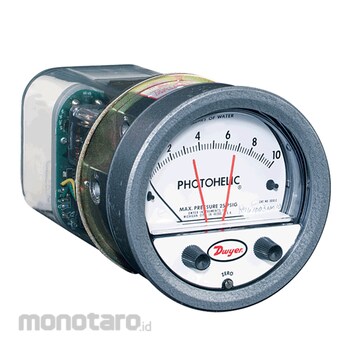

The Series A3000 Photohelic Switch/Gages function as versatile, highly repeatable pressure switches combined with a precise pressure gage employing the time-proven Magnehelic gage design. The Photohelic switch/gage measures and controls positive, negative or differential pressures of air and compatible gases. Two phototransistor actuated, DPDT relays are included for low/high limit control. Easy to adjust set point indicators are controlled by knobs located on the gage face. Individual set point deadband is one pointer width - less than 1% of full scale. Set points can be interlocked to provide variable deadband - ideal for control of fans, dampers, etc. Gage reading is continuous and unaffected by switch operation, even during loss of electrical power.
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for detailsFeature
- Bezel and front cover (with set point knobs and zero adjustment screw) removed to expose Photohelic switch/gage set point mechanism. Cover is clear polycarbonate plastic.- Gage pointer and light shutter are mounted on helix and balancing counterweight. Shutter passes through slot in optical limit switch to expose phototransistors to integral infrared light source or mask them depending on applied pressure.
- Light shield effectively protects phototransistors from strong outside light sources yet allows free pointer movement. It also gives interior a clean "finished" look.
- Optical limit switches are used for reliability and long service life. Attached directly to set pointers, they are individually aligned to assure precise switching accuracy.
- Semi-Flexible drive shaft connects to set point knobs.
- Zero adjustment screw connects to screw in cover to adjust zero pressure reading.
- Plastic enclosure protects electronic components and electrical connections.
- Polycarbonate connection or terminal board is self-extinguishing.
- Glass epoxy printed circuit boards for durability and permanence.
- Load relays are DPDT with latching feature for maximum application versatility.
- Electronics are designed to operate on 50/60 Hz, 120 volt current with 10% over or under voltage. Special units for other voltages are available.
- Switch set pointers show switch settings at all times.
- Spring loaded friction clutch prevents operator damage of set point mechanism.
- 3-in-1 instrument allows the reduction of several instruments with one product, saving inventory, installation time and money.
- Patented design and 1% full scale dead band provides quick response to pressure changes means no delay in switching and chatter-free operation.
- A wide range of models that can meet pressure measurement specifications from low to very high.
Use
- Air Conditioning Systems- Clean Rooms
- Fume Exhaust Systems
