5 range supplied : 850/1300/1310/1490/1550 (with multiple models)
Ideal for fiber optic network installation and maintenance

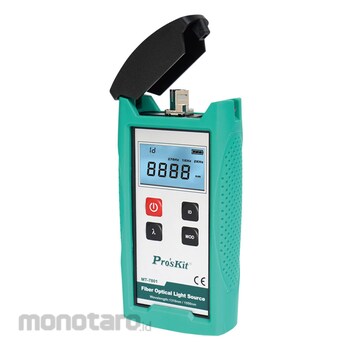

Pro'sKit Fiber Optical Light Source
#Grup produk P106522811
Sebelum PPN:
Rp4.099.900 - Rp8.299.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Dimensions (mm) | 165x80x35 |
|---|---|
| Power Stability (dB) | ±0.05/1hr;±0.1/8hour |
| OPTIC connector | SC/PC |
| Power Source (V) | 2 x 1.5 AA batteries (not included) |
| Auto Power Off (minute) | 10 (could be reset) |
| Battery charge | Yes (when using rechargeable battery), by DC 5V power jack |
| Modulation Detection | 270Hz,1kHz, 2kHz |
| Operating Temperature (°C) | -10 to +60; <90%RH |
| Storage Temperature (°C) | -20~+70; <90%RH |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Stability and Reliability Output- Built-in optic isolator, larger and more stable compared to desktop source.
Full Range Supply
- MT-7801 provides single mode 1310/1550 wavelength light source
- MT-7802 provides multi mode 850/1300 wavelength light source
- MT-7803 provides single mode 1310/1490/1550 wavelength light source
Supports SC/PC
- Supports SC/PC connectors
LCD display with Backlight
- Easily reading and allowing work in dark area.
WAVE ID
- In WaveID mode, it will encode each wavelength with a unique WaveID code; output the same wavelength automatically to identify the wavelength. (Work with Pro’sKit MT-7601& MT-7603 power meter)
Selection of 3 Modulations, distinguish OPTIC fiber line
- 270Hz, 1KHz, 2KHz
Easy Operation
- Designed with single key to switch the wavelength, easy,
- flexible and convenient.
User friendly
- Power by Battery, more convenient.
- Comes with DC5V power jack allows charging the rechargeable b attery with. DC input (adaptor is not included) when using the rechargeable battery.
- Auto power off.
- Protective rubber boot with a soft protective case.
