Multi-wavelength support
Modulation detection
PC link for real time analysis

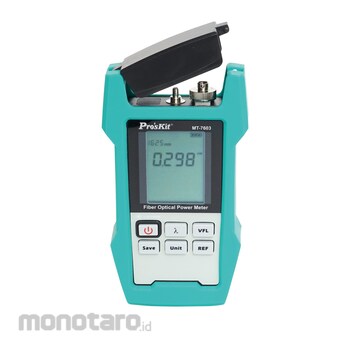

Pro'sKit Fiber Optical Power Meter
#Grup produk P106522699
Spesifikasi
| Dimensions (mm) | 170x97x38 |
|---|---|
| Low Battery Warning | Low battery energy |
| Data Storage | 1000 group |
| Optional Accessory | LC adaptor (5MT-7601-LC), SC adaptor (5MT-7601-SC) |
| Modulation Detection (kHz) | 270Hz,1,2 |
| Automatic Power Off Time (minute) | 10 (can be cancelled) |
| Power Supply | AA/LR6 1.5V x 3PCS (not included) |
| Visual Fault Locator (mW) | 1 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Supports dark environment Operation- Comfortable LCD backlight display.
Memory capacity of 1000 data
FC/PC interface
- 2.5mm FC interface supports connectors, FC-LC hybrid adaptor and SC adaptor are available for option
Modulation Detection 2 kHz / 1 kHz / 270 Hz
Wavelength measurement calibration
- As per standard light source output wavelength, adjust accuracy, adjust range ±3dB.
- Wide range of power measurement from 850nm to 1625nm
o Multiple mode:850nm/1300nm/
o Single mode:1310nm/1490nm/1550nm/1625nm
New REF User-defined
Can store the current laser source as a new reference value.
Extra User Friendly Design
- Auto power off, low battery indication, Multi unit selection:dBM, mW, uW, nW, Protective rubber boot, soft protective case.
