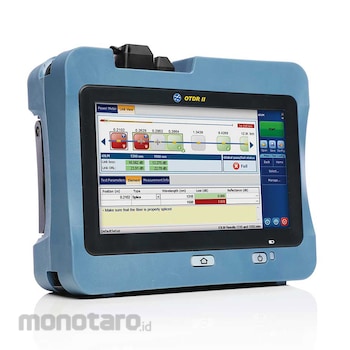

Ideal Network OTDR II - Tier 2 Fiber Optic Cable Tester

- iOLM (Intelligent Optical Link Mapper)-automatic configuration and multiple measurements on the same link provides the best possible measurements regardless of fibre configuration.
- Onboard PDF reporting.
- Macro bend detection.
- Short attenuation dead zone: MM: 2.5m/SM: 3m and event dead zone: MM: 0.5m/SM: 0.7m for accurate location and characterisation of events.
- Quad wavelength (850/1300/1310/1550) for both multimode and single-mode testing.
- Each fibre may be tested at two wavelengths in a single Autotest.
- Provides results in only a few seconds.
- Interchangeable fibre adapters with a wide variety of available configurations.
- Transfer test results to PC via USB flash drives or USB cable.
- Optional video inspection micro scope to check connectors for cleanliness or damage.
- Provides simple PASS/FAIL results and macro bend detection in single-mode fibres that helps users identify bends or kinks in the cable, saving time during installation and troubleshooting.
- Small size for one handed operation.
- Rubber over-mould for enhanced drop protection 1 lithium-ion battery provides up to 12 hours operation.
- Warranty is 1 year and we recommend an annual calibration Rugged carrying case for field use.
