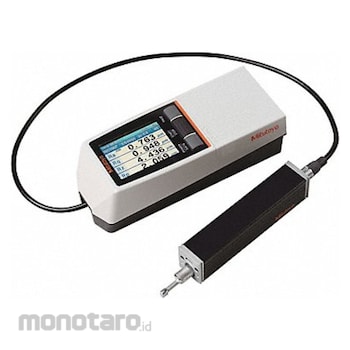

Mitutoyo Surface Roughness Tester 17856112A SJ-210, 5 um Probe Tip Radius Color 14200 Micron 1pc
Rp129.999.900
Persediaan
Spesifikasi Produk
| Model Number | 17856112A |
|---|---|
| Unit | 1pc |
| UNSPSC | 41114508 |
| Data Output Type | Cable |
| Display Type | LCD |
| Drive Unit Principle | Standard |
| Measuring Condition Standards | JIS82, JIS94, JIS01, ISO97, ANSI, VDA |
| Measuring Range (mm) | 17.5 |
| Measuring Range (inch) | 0.69 |
| Number of Parameters Measured | 41 |
| Operating Position | Any Position |
| Parameters Measured | A1, A2, AR, HSC, Htp, Mr1, Mr2, Possible Customize, R, R δ c, R∆a, R∆q, R3z, Ra, Rc, Rk, Rku, Rlr, Rmax, Rmr, Rmr(c), Rp, RPc, Rpk, Rpm, Rppi, Rq, Rsk, Rsm, Rt, Rv, Rvk, Rx, Ry, Rz, Rz1max, RzJIS, S, tp, Vo |
| Probe Sensor Type | Differential Inductance |
| Probe Tip Radius (µm) | 5 |
| Tester Series | SJ-210 |
| Analysis Graph | BAC, ADC |
| Calibration Functions | Saves Last Inputted Nominal Value of Specimen/Average Calibration With Multiple Measurement (Max.5 Times) Is Available |
| Case Type | Carrying Case |
| Compatible Data Output Cable | Mfr. No. 12BAA303 |
| Data Output Connection Type | USB, Digimatic, Printer, RS232C, Foot |
| Detector Measuring Force (mN) | 4 |
| Digital Filter Type | Gaussian, 2CR75, PC75 |
| Dimensions - Display Unit (inch) | 2.05x2.60x6.30 |
| Dimensions - Drive Unit (inch) | 1.02x4.50x0.90 |
| Display Languages | Japanese, English, German, French, Italian, Spanish, Portuguese, Korean, Traditional Chinese, Simplified Chinese, Czech, Polish, Hungarian, Turkish, Swedish, Dutch |
| Display Screen Size (inch) | 2.4 |
| Includes | Connecting Cable, Roughness Specimen (Ra 3.00µm), Carrying Case, Calibration Stage, Protective Sheets For Display, AC Adapter, Operation Manual, Quick Reference Manual, Warranty |
| Includes Battery | No |
| Includes Case | Yes |
| Includes Printer | No |
| Number of Sampling Spans | 1, 2, 3, 4, 5, 6, 7, 8, 9, 10 |
| Power Supply | Battery and AC Adapter |
| Product Type | Portable Surface Roughness Tester with External Display |
| Berat (Kg) | 2.6 |
| Tanggal Produk Terdaftar | 28 March 2024 |
| Terakhir Diperbaharui | 27 May 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Portable surface roughness testers, also known as surface testers, are built with a probe that can extend from the body and digital display to reach large workpieces, hard-to-reach features, and take other measurements in complex positions. They can cycle through standard measurements such as Ra and Rz of a surface.
Peringatan
Catatan Penting: Tanpa GaransiProduk ini adalah barang original yang didatangkan langsung dari luar negeri. Karena statusnya sebagai produk impor, tidak tersedia garansi baik dari produsen maupun dari distributor lokal. Kami memastikan bahwa barang telah melalui pengecekan kualitas sebelum dikirim kepada Anda, namun segala risiko kerusakan atau cacat produk setelah pembelian menjadi tanggung jawab pembeli.
Dengan melakukan pembelian, Anda dianggap telah memahami dan menyetujui kondisi ini. Harap berhati-hati dan pertimbangkan dengan matang sebelum melakukan pembelian.
Feature
Memory Storage Capacity :Internal Memory: Measurement Condition (10 Sets), Measured Profile (1 Set), Memory Card (Option): 500 Measurement Conditions, 10000 Measured Profiles, 500 Display Images, Text File (Measurement Conditions /Measured Profile / Assessed Profile / Bearing Area Curve / Amplitude Distribution Curve)
Up To 10 Measurement Conditions And One Measured Profile Can Be Stored In The Internal Memory, Color Graphic Display, The Display Interface Supports 16 Languages, Which Can Be Freely Switched, Access To Each Feature Can Be Password-Protected, Which Prevents Unintended Operations And Allows You To Protect Your Settings, An Alarm Warns You When The Cumulative Measurement Distance Exceeds A Preset Limit
