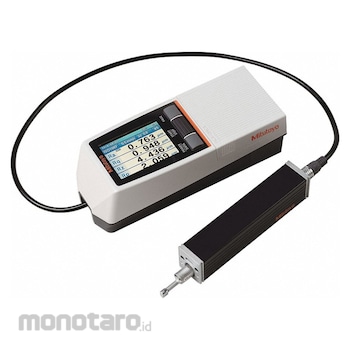

Mitutoyo Surface Roughness Tester
#Grup produk P109329312
Sebelum PPN:
Rp129.999.900 - Rp149.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| UNSPSC | 41114508 |
|---|---|
| Analysis Graph | BAC, ADC |
| Calibration Functions | Saves Last Inputted Nominal Value of Specimen/Average Calibration With Multiple Measurement (Max.5 Times) Is Available |
| Case Type | Carrying Case |
| Compatible Data Output Cable | Mfr. No. 12BAA303 |
| Data Output Connection Type | USB, Digimatic, Printer, RS232C, Foot |
| Data Output Type | Cable |
| Detector Measuring Force (mN) | 4 |
| Digital Filter Type | Gaussian, 2CR75, PC75 |
| Display Languages | Japanese, English, German, French, Italian, Spanish, Portuguese, Korean, Traditional Chinese, Simplified Chinese, Czech, Polish, Hungarian, Turkish, Swedish, Dutch |
| Display Screen Size (inch) | 2.4 |
| Display Type | LCD |
| Includes | Connecting Cable, Roughness Specimen (Ra 3.00µm), Carrying Case, Calibration Stage, Protective Sheets For Display, AC Adapter, Operation Manual, Quick Reference Manual, Warranty |
| Includes Battery | No |
| Includes Case | Yes |
| Includes Printer | No |
| Measuring Condition Standards | JIS82, JIS94, JIS01, ISO97, ANSI, VDA |
| Measuring Range (inch) | 0.69 |
| Measuring Range (mm) | 17.5 |
| Number of Parameters Measured | 41 |
| Number of Sampling Spans | 1, 2, 3, 4, 5, 6, 7, 8, 9, 10 |
| Operating Position | Any Position |
| Parameters Measured | A1, A2, AR, HSC, Htp, Mr1, Mr2, Possible Customize, R, R δ c, R∆a, R∆q, R3z, Ra, Rc, Rk, Rku, Rlr, Rmax, Rmr, Rmr(c), Rp, RPc, Rpk, Rpm, Rppi, Rq, Rsk, Rsm, Rt, Rv, Rvk, Rx, Ry, Rz, Rz1max, RzJIS, S, tp, Vo |
| Power Supply | Battery and AC Adapter |
| Probe Sensor Type | Differential Inductance |
| Probe Tip Radius (µm) | 5 |
| Product Type | Portable Surface Roughness Tester with External Display |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Portable surface roughness testers, also known as surface testers, are built with a probe that can extend from the body and digital display to reach large workpieces, hard-to-reach features, and take other measurements in complex positions. They can cycle through standard measurements such as Ra and Rz of a surface.
Feature
Portable Surface Roughness Tester with External Display Features Up To 10 Measurement Conditions And One Measured Profile Can Be Stored In The Internal Memory Color Graphic Display The Display Interface Supports 16 Languages Which Can Be Freely Switched Access To Each Feature Can Be Password-Protected Which Prevents Unintended Operations And Allows You To Protect Your Settings An Alarm Warns You When The Cumulative Measurement Distance Exceeds A Preset Limit Measuring Range 17.50 mmUlasan Produk
