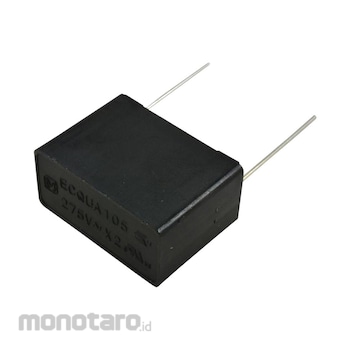

Panasonic Capacitor ECQUAAV824T1 Safety, Metallized PP, Radial Box - 2 Pin, X2, Through Hole 0.822µF 1pc
Rp20.900
Persediaan
Spesifikasi Produk
| Model Number | ECQUAAV824T1 |
|---|---|
| Unit | 1pc |
| Product Range | ECQUA |
| Suppression Class | X2 |
| Voltage Rating X (VAC) | 310 |
| Qualification | AEC-Q200 |
| Lead Spacing (mm) | 22.5 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Temperature (°C) | 110 |
| Capacitor Mounting | Through Hole |
| Capacitor Case/Package | Radial Box - 2 Pin |
| Dielectric Type | Metallized PP |
| Capacitance Tolerance (%) | ± 10 |
| Humidity Rating | GRADE III (Test Condition B) |
| Capacitance (µF) | 0.822 |
| Berat (Kg) | 0.1 |
| Tanggal Produk Terdaftar | 17 July 2023 |
| Terakhir Diperbaharui | 08 December 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
ECQUA series (Class X2) metallized polypropylene film capacitor for automotive applications.High safety (safety function installed)
High humidity resistance (85°C, 85%)
High thermal shock resistance (-40 to 85°C, 1000 cycles)
Flame-retardant plastic case and non-combustible resin
AEC-Q200 compliant
Interference suppressors for automotive
UL60384-14, CAN/CSA E60384-14, EN60384-14, IEC60384-14 certified
In accordance with UL/CSA and European safety regulation class X2 equipped with a safety mechanism
