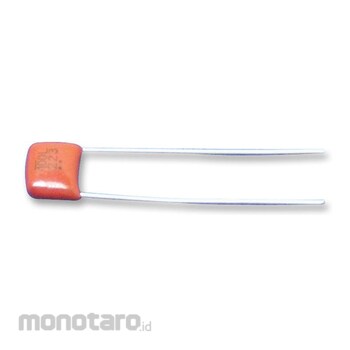

Panasonic Capacitor ECQE2104JF General Purpose Film, Metallized PET, Radial Box - 2 Pin 0.1µF 1pc

Name: Panasonic Capacitor ECQE2104JF General Purpose Film, Metallized PET, Radial Box - 2 Pin 0.1µF 1pc
Brand: Panasonic
SKU: S037410797
Price: 2900 IDR
Availability: InStock

#Nomor SKU S037410797

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	ECQE2104JF
Unit	1pc
Product Range	ECQE(F)
Lead Spacing (mm)	7.5
Product Length (mm)	8.4
Minimum Operating Temperature (°C)	-40
Product Width (mm)	10.3
Maximum Operating Temperature (°C)	105
Capacitor Mounting	Through Hole
Capacitor Case/Package	Radial Box - 2 Pin
Voltage DC (V)	250
Dielectric Type	Metallized PET
Voltage (V AC)	150
Capacitor Terminals	Radial Leaded
Product Height (mm)	8.4
Capacitance Tolerance (%)	± 5
Capacitance (µF)	0.1
Berat (Kg)	0.1
Tanggal Produk Terdaftar	17 July 2023
Terakhir Diperbaharui	08 December 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

The Panasonic ECQE(F) series are general purpose, radial leaded metalized polyester film capacitor. The capacitance value includes E12 decade values from 0.0010µF to 10µF. ECQE(F) series capacitors have non inductive construction using metalized polyester film with flame retardant epoxy resin coating. These film capacitors are non polarized electrical capacitors with an insulated plastic as dielectric.

Feature

Rated DC voltage of 100V, 250V, 400V, 630V, 1000V, 1250V

Rated AC voltage of 125V and 250V

±5% and ±10% tolerance

Self healing property

Excellent electrical characteristics

Operating temperature range -40°C to 105°C

Use

Industrial,

Power Management,

Consumer Electronics,

Portable Devices
