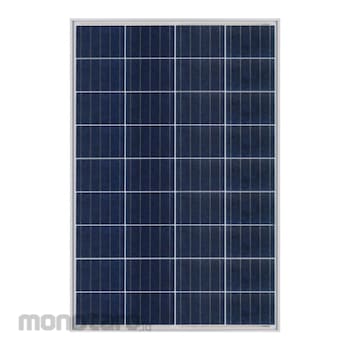

SOLANA Solar Panel Polycrystalline SOL-P12 100W 12V 1pc

Name: SOLANA Solar Panel Polycrystalline SOL-P12 100W 12V 1pc
Brand: SOLANA
SKU: S035965985
Price: 779900 IDR
Availability: InStock

#Nomor SKU S035965985

SOLANA

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	SOL-P12 100W
Unit	1pc
Voltage at Pmax (V)	17.8
Current at Pmax (A)	5.62
Open Circuit Voltage (V)	22.4
Short Circuit Current (A)	5.95
Dimensions (cm)	100x67x3
Voltage (V)	12
Module Efficiency (%)	15
Solar Cell (mm)	Poly-crystalline 156x104
Power Tolerance (%)	Pmax 0 to +3
Numbers of Cells	36pcs of cells in series
Max. System Voltage (VDC)	600
Max. Series Fuse Rating (A)	10
Temperature Cycling Range (°C)	-40 to +85
Normal Operating Temperature Conditions (NOTC) (°C)	47
Temperature Coefficients (%/°C)	ISC +0.06, VOC ISC -0.35, Pmax -0.4
Load Capacity	680pcs/20'GP, 2244pcs/40'HQ
Berat (Kg)	8.0
Tanggal Produk Terdaftar	27 April 2023
Terakhir Diperbaharui	27 May 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

The Structure of Solar Modules
- Cells
The hi-efficiency of mono and poly solar cells ensure adequate power for panels.
- Glass
Low-iron tempered glass, 3.2mm thickness with higher reflectivity.
- EVA
Highertransmission rate, antioxidant capacity and temperature resistance, no expansion or contraction.
- Back film
Increase efficiency of modules slightly and reduce module's temperature. Aging resistance, corrosion resistance and airtight.
- Aluminum Frame
Usingthe framework of the anodized aluminum frame with high intensity, mechanical shock resistance capacity.
