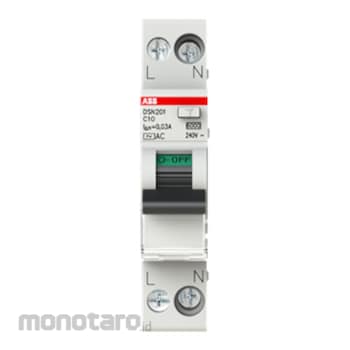

ABB Residual Current Circuit Breakers with Overcurrent Protection DSN201 AC-C10/0.03 1pc

Name: ABB Residual Current Circuit Breakers with Overcurrent Protection DSN201 AC-C10/0.03 1pc
Brand: ABB
SKU: S032545920
Price: 589900 IDR
Availability: OutOfStock

#Nomor SKU S032545920

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	DSN201 AC-C10/0.03
Unit	1pc
Number of Poles	1+N
Product Depth/Length (m)	0.067
Product Height (m)	0.085
Connecting Capacity (mm²)	Busbar 10 , Rigid 16-16 , Flexible 10-16
Overvoltage Category	III
Built-in Depth (mm)	68.9
Options Provided	None
Frequency (Hz)	50/60
Energy Limiting Class	3
Input Voltage Type	AC
Electrical Endurance (cycle)	10000
Mechanical Endurance (cycle)	20000
Leakage Current Type	AC
Maximum Surge Current (kA)	0.25
Operating Characteristic	Instantaneous
Power Supply Connection	Arbitrary
Position of Neutral Terminals	Right
Earthing Switch Type	Undelayed
Power Loss (W)	2
Berat (Kg)	0.1
Tanggal Produk Terdaftar	16 July 2022
Terakhir Diperbaharui	27 May 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

DSN201 AC-C10/0.03 Residual Current Circuit Breaker with Overcurrent Protection
DSN201 series RCBO is a 1P+N in one module device for the protection against short-circuit currents, overload, earth fault currents, indirect contacts, additional protection against direct contacts (10 and 30 mA versions).
