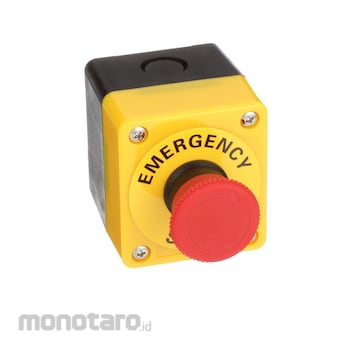

OMRON Emergency Stop Pushbutton Switch (ɸ22/ɸ25) Control Box Built-in Set A22E A22E-M-11B 1pc

Name: OMRON Emergency Stop Pushbutton Switch (ɸ22/ɸ25) Control Box Built-in Set A22E A22E-M-11B 1pc
Brand: OMRON
SKU: S032050004
Price: 1099900 IDR
Availability: OutOfStock

#Nomor SKU S032050004

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	A22E-M-11B
Unit	1pc
Protection Class	IP65 (oil resistant type)
Withstand Voltage	Between homopolar terminals, between each terminal and ground: 2500 VAC 50/60 Hz for 1 min.
Light Source	LED
Ambient Relative Humidity (RH)	35 to 85
Shock Resistance Malfunction (m/s²)	250 or more (malfunction less than 1ms)
Type	Non-illuminated
Pollution Degree (Environment to Use)	Pollution degree 3 (EN60947-5-1)
PTI (Proof Tracking Index)	175
Storage Temperature (°C)	-40 to +70 (with no icing or condensation)
Insulation Resistance (MΩ)	100 or more (with DC500V mega)
Impact Resistance Durability (m/s²)	1000
Contact Configuration	1a1b
Vibration Resistance (Malfunction)	10 to 55 Hz, 1.5 mm double amplitude (within 1 ms)
Mechanical Durability	300,000 times or more (once set or reset)
Allowable Operating Speed	Mechanical: 30 times / min., Electrical: 30 times / min.
Electrical Durability	300,000 times or more (once set or reset)
Electric Shock Protection Class	Class II
M Code	46557104
Berat (Kg)	0.1
Tanggal Produk Terdaftar	27 June 2022
Terakhir Diperbaharui	20 October 2025
