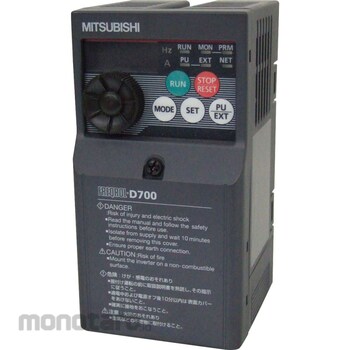

Mitsubishi Electric Inverter Freqrol-D700 Series (3-Phase 400V) FR-D740-0.75K 1unit
Rp6.199.900
Persediaan
Spesifikasi Produk
| Model Number | FR-D740-0.75K |
|---|---|
| Unit | 1unit |
| Power Supply Voltage (V) | 3-phase 380 to 480 (50Hz/60Hz) |
| Compatible Motor Capacity (kW) | 0.75 |
| Frequency Setting Resolution | Analog input 0.06Hz/60Hz (Terminals 2, 4:0 to 10V/10bit), 0.12Hz/60Hz (Terminals 2, 4:0 to 5V/9bit), 0.06Hz/60Hz (Terminals 4:0 to 20mA/10bit) Digital input 0.01Hz |
| Frequency Accuracy | Analog input Within +/-1% of maximum output frequency (25 degrees Celsius+/-10 degrees Celsius) Digital input Within 0.01% of set output frequency |
| Rated Current (A) | 2.2 |
| DC braking | Operating frequency (0 to 120Hz), operating time (0 to 10s), operating voltage (0 to 30%) variable |
| Stall Prevention Operation Level | Operating current level can be set (0 to 200% variable), presence or absence can be selected |
| Output rated capacity (kVA) | 1.7 |
| Alarm Function | Fan failure, overcurrent stall prevention, overvoltage stall prevention, PU stop, parameter writing error, regenerative brake pre-alarm, electronic thermal pre-alarm, maintenance output, undervoltage |
| Vibration (m/s²) | 5.9 |
| Cooling Method | Self cooling |
| Power Supply Capacity (kVA) | 2.5 |
| Ambient Temperature (°C) | -10 to 50 (No freezing) (-10 to 40 for fully closed construction) |
| Output overload current rating | 150%60s, 200%0.5s (reverse time characteristic) |
| AC voltage allowable fluctuation (V) | 325 to 528 |
| Atmosphere | Indoor (no corrosive gas, flammable gas, oil mist, dust) |
| Ambient Humidity (% RH) | 90 or less (no condensation) |
| Output voltage (V) | 3 phase 380 to 480 |
| M Code | 11100424 |
| Berat (Kg) | 0.7 |
| Tanggal Produk Terdaftar | 05 November 2021 |
| Terakhir Diperbaharui | 02 April 2026 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
New standard for Mitsubishi inverterThe spring clamp terminal (control circuit) realizes high reliability and easy wiring. Equipped with a safety stop function and a hardware cut-off circuit for highly reliable emergency output cut-off.
Equipped with best-in-class performance in compact body
The compact body (3.7K or less) with the same mounting dimensions as our smallest inverter, the FR-S500 series, is equipped with general-purpose magnetic flux vector control, achieving a high torque of 150% (3.7K or less) at 1Hz.
Enhanced functions
Optimal for fan/pump application Excitation control/PID control, Machine tool application for deceleration/stop function during power failure, General purpose magnetic flux vector control for conveyor/food application/Brake resistor connection (0.4K to 15K), etc. It was equipped with.
