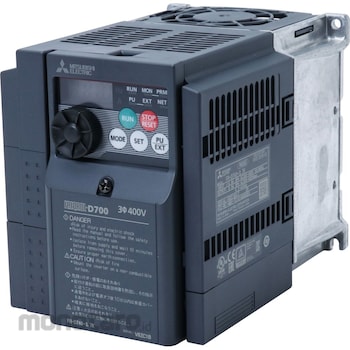

Mitsubishi Electric Inverter Freqrol-D700 Series (3-Phase 400V)
#Grup produk P105904452
Sebelum PPN:
Rp6.499.900 - Rp11.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| DC braking | Operating frequency (0 to 120Hz), operating time (0 to 10s), operating voltage (0 to 30%) variable |
|---|---|
| Ambient Humidity (% RH) | 90 or less (no condensation) |
| AC voltage allowable fluctuation (V) | 325 to 528 |
| Frequency Setting Resolution | Analog input 0.06Hz/60Hz (Terminals 2, 4:0 to 10V/10bit), 0.12Hz/60Hz (Terminals 2, 4:0 to 5V/9bit), 0.06Hz/60Hz (Terminals 4:0 to 20mA/10bit) Digital input 0.01Hz |
| Output overload current rating | 150%60s, 200%0.5s (reverse time characteristic) |
| Power Supply Voltage (V) | 3-phase 380 to 480 (50Hz/60Hz) |
| Stall Prevention Operation Level | Operating current level can be set (0 to 200% variable), presence or absence can be selected |
| Vibration (m/s²) | 5.9 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
New standard for Mitsubishi inverterThe spring clamp terminal (control circuit) realizes high reliability and easy wiring. Equipped with a safety stop function and a hardware cut-off circuit for highly reliable emergency output cut-off.
Equipped with best-in-class performance in compact body
The compact body (3.7K or less) with the same mounting dimensions as our smallest inverter, the FR-S500 series, is equipped with general-purpose magnetic flux vector control, achieving a high torque of 150% (3.7K or less) at 1Hz.
Enhanced functions
Optimal for fan/pump application Excitation control/PID control, Machine tool application for deceleration/stop function during power failure, General purpose magnetic flux vector control for conveyor/food application/Brake resistor connection (0.4K to 15K), etc. It was equipped with.
