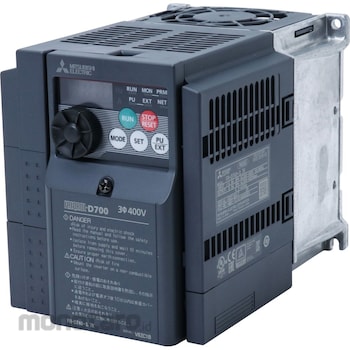

Mitsubishi Electric Inverter FREQROL-D700 Series (3-Phase 400V) (Inverter Drive Kecepatan Variabel) FR-D740-3.7K 1unit
Rp12.999.900
Persediaan
Spesifikasi Produk
| Model Number | FR-D740-3.7K |
|---|---|
| Unit | 1unit |
| Control System | Soft-PWM control/high carrier frequency PWM control (V/F control, general-purpose magnetic flux vector control, optimal excitation control can be selected) |
| DC braking | Operating frequency (0 to 120Hz), operating time (0 to 10s), operating voltage (0 to 30%) variable |
| Allowable frequency fluctuation | +/-5% |
| Compatible Motor Capacity (kW) | 3.7 |
| Altitude (m) | Below sea level 1000 |
| Starting Torque | 150% or more (at 1 Hz) When slip correction is set by general-purpose magnetic flux vector control |
| Ambient Humidity (% RH) | 90 or less (no condensation) |
| Stall Prevention Operation Level | Operating current level can be set (0 to 200% variable), presence or absence can be selected |
| AC voltage allowable fluctuation (V) | 325 to 528 |
| Protective structure (JEM1030) | Closed type (IP20), fully closed structure series is IP40. |
| Cooling Method | Forced air cooling |
| Approximate mass (kg) | 1.5 |
| Power Supply Capacity (kVA) | 9.5 |
| Output rated capacity (kVA) | 6.1 |
| Storage Temperature Range (°C) | -20 to 65 |
| Frequency (Hz) | 50/60 |
| Output overload current rating | 150%60s, 200%0.5s (reverse time characteristic) |
| Power Supply Voltage (V) | 3-phase 380 to 480 (50Hz/60Hz) |
| Frequency Setting Resolution | Analog input 0.06Hz/60Hz (Terminals 2, 4:0 to 10V/10bit), 0.12Hz/60Hz (Terminals 2, 4:0 to 5V/9bit), 0.06Hz/60Hz (Terminals 4:0 to 20mA/10bit) Digital input 0.01Hz |
| Vibration (m/s²) | 5.9 |
| M Code | 11100451 |
| Berat (Kg) | 0.7 |
| Tanggal Produk Terdaftar | 05 November 2021 |
| Terakhir Diperbaharui | 02 October 2026 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
New standard for Mitsubishi inverterThe spring clamp terminal (control circuit) realizes high reliability and easy wiring. Equipped with a safety stop function and a hardware cut-off circuit for highly reliable emergency output cut-off.
Equipped with best-in-class performance in compact body
The compact body (3.7K or less) with the same mounting dimensions as our smallest inverter, the FR-S500 series, is equipped with general-purpose magnetic flux vector control, achieving a high torque of 150% (3.7K or less) at 1Hz.
Enhanced functions
Optimal for fan/pump application Excitation control/PID control, Machine tool application for deceleration/stop function during power failure, General purpose magnetic flux vector control for conveyor/food application/Brake resistor connection (0.4K to 15K), etc. It was equipped with.
