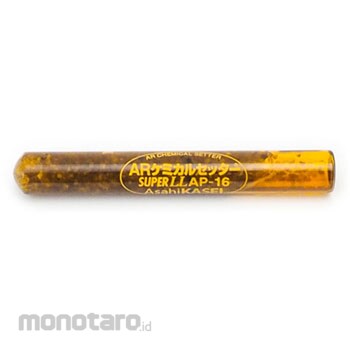

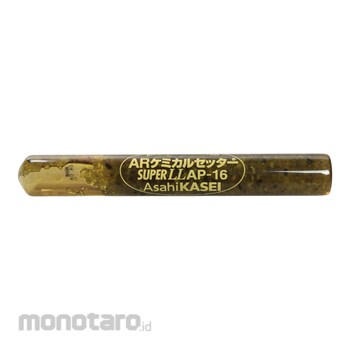

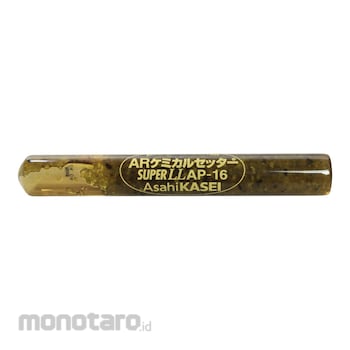

ASAHI KASEI AR Chemical Setter Super Ll Ap AP-16 1pc

Name: ASAHI KASEI AR Chemical Setter Super Ll Ap AP-16 1pc
Brand: ASAHI KASEI
SKU: S029026388
Price: 99000 IDR
Availability: InStock

#Nomor SKU S029026388

ASAHI KASEI

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	AP-16
Unit	1pc
Allowable Long-term Tensile Load (kN [kgf])	25.4
Allowable Short-term Tensile Load (kN [kgf])	38.1
Capacity (cm³)	21
Capsule Diameter (mm)	17
Capsule Length (mm)	125
Drilling Diameter (mm)	(M16, W5/8)19, (D16)20
Hole Depth (mm)	130
Mass (g)	40.9
Maximum Tensile Load kn (kgf)	100.4
Suitable Bolt	M16, W5/8
Suitable Material	For concrete
M Code	37131062
Berat (Kg)	0.1
Tanggal Produk Terdaftar	07 October 2021
Terakhir Diperbaharui	15 August 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

Epoxy acrylate resin with excellent alkali resistance is used as the main agent, so there is almost no decrease in fixing strength due to aging.
It has high initial rigidity against tensile force and excellent toughness, so it can be widely used for structural members.
Glass sealed type that maintains high performance. Product performance does not deteriorate for about 2 years when stored in a cool and dark place.
Excellent vibration resistance makes it ideal for installation of equipment.
Excellent curability in low temperature construction.
Concrete, fence/soundproof wall installation, tunnel construction/dam construction/fall rock prevention net installation, etc.
Stopper is not included.
maximum tensile load is the value of time concrete strength FC21N/mm ^2.

Warning

- Stopper is not included.
- The tensile maximum load is the value at the concrete intensity FC21N / mm2.

Use

Applications Concrete, fence / soundproofed wall mounting, tunnel construction, dam construction, falling stone prevention network installation, etc.
