Version:
1 fixed and 1 movable arm with carbide spherical contact points. The deflection of the moving
contact point is transmitted to the dial indicator. The measured result can be read directly.

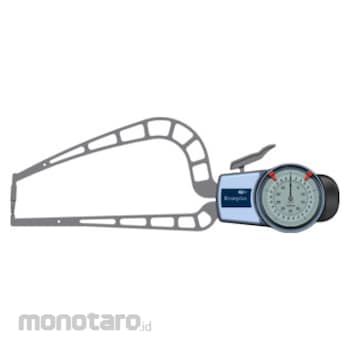

KROEPLIN External Quick Caliper 46Q 1unit
Rp20.999.900
Persediaan
Spesifikasi Produk
| Model Number | 46Q |
|---|---|
| Unit | 1unit |
| Scale divisions (mm) | 0.05 |
| Carbide Spherical Point (mm) | Ø 3 |
| Dial Indicator (mm) | Ø 66 |
| Max. Contact Point Length L (mm) | 169 (measurement depth) |
| Measuring Range (mm) | 0 to 50 |
| Min. Bore Diameter (mm) | 12 |
| Index Protection | IP 65 |
| Error Limit (mm) | 0.05 |
| Standard | Manufacturer’s standard |
| Measurement Technology | Analogue |
| Calibration | C7 |
| Type of Product | External Quick Calipers |
| Berat (Kg) | 0.4 |
| Tanggal Produk Terdaftar | 14 June 2021 |
| Terakhir Diperbaharui | 27 May 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Function:IP65: Protected against jets of water from all directions and protected against penetration by
dust (dust-tight), also completely protected against touching.
Calibration: C7
IP Index of Protection: IP 65
Scale divisions: 0.05 mm
Error limit: 0.05 mm
Carbide spherical point ⌀: 3 mm
minimum bore ⌀: 12 mm
maximum contact point length L (measurement depth): 169 mm
Dial indicator ⌀: 66 mm
