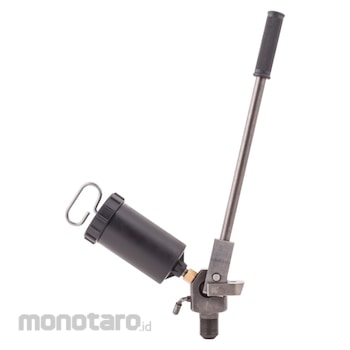

SKF Injektor Oli 226400 E/400 1pc

Oil injectors
300 and 400 MPa (43 500 and 58 000 psi)
The 226400 E series is suitable for many applications using the SKF Oil injection method. The injector is supplied with an oil reservoir in a compact carrying case.
The injector can be mounted directly onto the work piece or connected to an adapter block to make a floor standing model, making it easy to connect pressure gauges and high pressure pipes.

For applications where 400 MPa (58 000 psi) is required, the SKF 226400 E/400 is available.

Features & benefits
- Easy to operate
- Compact carrying case
- When the pressure is released, the unused oil is automatically returned to the reservoir, minimizing the risk of oil leakage to the environment
- Oil container capacity 200 cm³ (12.2 in.³)
- Can be used with a wide range of accessories, such as:
- Adapter block
- Pressure gauges
- High pressure pipes
- Connecting nipples

Applications
- Bearings
- Couplings
- Railway wheels
- Gear wheels
- Flywheels
- SKF OK Couplings
- For many oil injection applications where maximum pressures of up to 400 MPa (58 000 psi) is required
