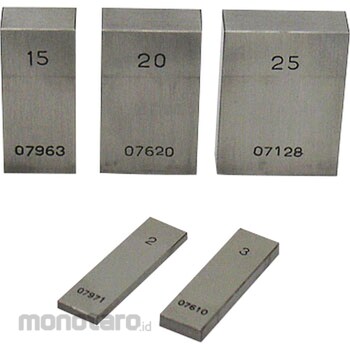

monotaro Gauge Block GBS-10 1set(10pcs)
Rp3.599.900
Persediaan
Spesifikasi Produk
| Model Number | GBS-10 |
|---|---|
| Unit | 1set(10pcs) |
| Block Dimension (mm) | 9 x 30 (dimension exceeding 10 mm: 9 x 35) |
| Material | Steel |
| Precision | Dimensional tolerance:. More than 0.5 and not more than 10 mm ± 0.20 μm. (Allowable dimensional difference width: 0.16 μm Dimensional tolerance: more than 10 and 25 mm or less ± 0.30 (allowable dimensional difference width: 0.16 μm) |
| Grade | Grade 0 |
| Size (mm) | 1.25, 1.5, 1, 2, 3, 5, 10, 15, 20, 25 |
| M Code | 24653028 |
| Garansi Unit | 12 bulan |
| Garansi Part | 12 bulan |
| Garansi Service | 12 bulan |
| Berat (Kg) | 0.9 |
| Tanggal Produk Terdaftar | 17 July 2018 |
| Terakhir Diperbaharui | 15 August 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Deskripsi
General measurement, reference gauge for work
Description
It is a block gauge for measuring instruments.
- Block gauge for measuring instrument inspection.
- For checking before using the measuring instrument.
- Material : Made of Steel
- Set Contents : 1.25. 1.5. 1. 2. 3. 5. 10. 15. 20. 25 mm, optical parallel (one each)
- Block gauge for measuring instrument inspection.
- For checking before using the measuring instrument.
- Material : Made of Steel
- Set Contents : 1.25. 1.5. 1. 2. 3. 5. 10. 15. 20. 25 mm, optical parallel (one each)
Warning
* When using, please be careful not to scratch the measurement surface. * Please do not hit blocks. * Please clean the measuring surface and use it. * After use, please do rust prevent treatment so as not to rust.Ketentuan dan Kondisi Barang
