1. Small size Bottom area Space saving of about 40% compared to conventional products (AQ-R).
Built-in varistor Excellent absorption of external surge.
Input reverse connection with protection function Construction saving (tab terminal)
A lineup of radiator-integrated types with SSR already attached with dedicated thermal grease and screws (DIN rail one-touch installation possible)
Lineup of radiator integrated type (output configuration: 1a, 1a x 2)
DIN rail can be attached (optional)
Kitchen equipment, vending machines, injection molding machines, packaging machines, packaging machines, amusement equipment

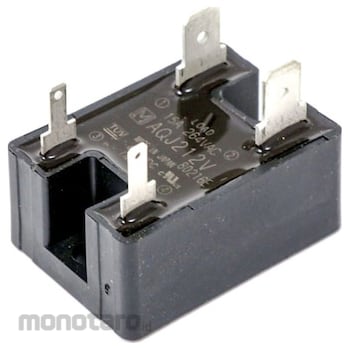

Panasonic AQ-J Solid State Relay
#Grup produk P112536329
Sebelum PPN:
Rp2.099.900 - Rp10.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Dimensions (mm) | 28x38x30 |
|---|---|
| Function | Built-in varistor |
| Insulation Resistance (MΩ) | Between input, output and case: 100 or more (at 500 V DC) |
| Operation Indicator | Zero cross turn on / off |
| Output Frequency (Hz) | 45 to 65 |
| Return Time (ms) | 1/2 cycle +1 or less |
| Shock Resistance (Destruction) | Single unit: 980 m/s² or more, Integrated heat sink: 197 m/s² (up/down, left/right, front/back directions) |
| Storage Temperature (°C) | -30 to 100 (but no freezing or condensation) |
| Terminal Shape | Tab terminal |
| Vibration Resistance (Destruction) | Single unit: 10 to 55 Hz, double amplitude 1.5 mm; Integrated heat sink: 10 to 55 Hz, double amplitude 0.75 mm (up/down, left/right, front/back directions) |
| Withstand Voltage | Between input and output: 3000Vrms (1 minute), Between input, output and case: 2500Vrms (1 minute) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Specification● Integrated heat sink type: No heat sink ● Surge current (output side): 150A ● Open circuit leakage current (output side): 5mA or less ● Closed circuit voltage drop (output side): 1.6V or less
