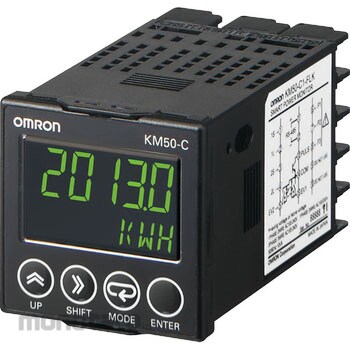

OMRON Smart Power Monitor KM50-C
#Grup produk P112446336
Spesifikasi
| Allowable Voltage Range | 85 to 110% of rated power supply voltage |
|---|---|
| Altitude (m) | 2000 or less |
| Ambient Humidity to Use (%RH) | Relative humidity 25-85 RH |
| Applicable Standard | EN61010-1(IEC61010-1), EN61326-1(IEC61326-1), UL61010-1, CAN/CSA-C22.2 No. 61010-1 |
| Communication Function | [Transmission code] CompoWay / F: ASCII, Modbus: Binary |
| Communication Protocol | RS-485 |
| Dimensions (WxDxH) (mm) | 48x84x48 |
| Environment | Overvoltage category, measurement category: II, pollution degree: 2 |
| Frequency Fluctuation Range (Hz) | 45~65 |
| Influence of Temperature | ± 1.0% FS ± 1digit (Percentage of power at ambient temperature 23°C, rated input, rated frequency, power factor 1 within operating temperature range) |
| Insulation Resistance (MΩ) | Between all current and voltage inputs and all RS-485, OUT1, event inputs, and I/O commons: 20 or more (500 VDC megger) Between all electrical circuits and front case: 20 or more (500 VDC megger) |
| Maximum Allowable Input Voltage | 110% of rated input voltage (continuous) |
| Memory | EEPROM (nonvolatile memory), number of writes: 1 million |
| Power Consumption (VA) | 7 or less |
| Power Supply Voltage (V) | Shared with measurement voltage input AC100-240 |
| Protection Class | Front: IP66 (when panel mounted), Rear case: IP20, Terminal part: IP00 |
| Rated Frequency (Hz) | 50/60 |
| Rated Input Current (A) | 5/50/100/200/400/600 (dedicated CT primary side current value) |
| Rated Input Voltage (V) | 100 to 240 AC (single-phase 2-wire): line voltage 100/200 AC (single-phase 3-wire): phase voltage/line voltage 100 to 240 AC (three-phase 3-wire): line voltage |
| Storage Humidity (%) | Relative humidity 25-85 |
| Storage Temperature (°C) | -25 to +65 (no condensation or icing) |
| Synchronization Type | Start-stop synchronization |
| Vibration Resistance (Hz) | Half amplitude: 0.35mm, acceleration: 50m/s², frequency: 10 ~ 150, 3 axially each 8min x 10 sweeps |
| Withstand Voltage | Between all current and voltage inputs and all RS-485, OUT1, event inputs, and I/O commons: 2800 VAC for 1 minute Between all electrical circuits and front case: 2800 VAC for 1 minute |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
On-panel installation/display possible, low-cost power meter energy saving analysis support. Simultaneous measurement of power and flow rate is possible. Pulse conversion function for flow measurement, etc. Simple temperature measurement function (equipped with a temperature sensor on the main unit)Precision measurement. In addition to power consumption, measure power generation (regenerative power) and reactive power (advance/delay). Corresponds to the primary side power measurement of the inverter, which is the mainstream of energy saving measures. Auto-range switching function for accurate measurement of standby/stop power. Energy-saving implementation support. money conversion function. Alarm output function (selectable from active power/reactive power/regenerative power/current/voltage/power factor).・Logging of measurement data on the main unit and support for installation and setting compatible with Modbus communication. Simple measurement function that does not require voltage wiring. Miswiring detection function for voltage lines.
