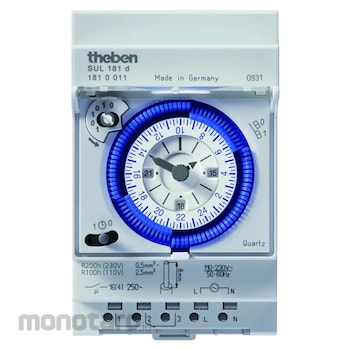

Theben Analog Time Switch
#Grup produk P108909634
Spesifikasi
| Capacity Loss Maximum (W) | 1.3 |
|---|---|
| Drive | Quartz-controlled stepper motor |
| Frequency (Hz) | 50 to 60 |
| Housing And Insulation Material | High-Temperature Resistant, Self-Extinguishing Thermoplastic |
| Incandescent/Halogen Lamp Load (W) | 1100 |
| LED Lamp < 2W (W) | 20 |
| LED Lamp > 8W (W) | 180 |
| Number Of Switching Segments | 96 |
| Number of Channels | 1 |
| Operating Voltage (V AC) | 110 to 230 |
| Power Consumption Standby Mode (W) | 0.5 |
| Power Reserve at 110V (days) | 3 Approx. 1.5 |
| Programmable Every (minute) | 15 |
| Shortest Switching Times (minute) | 15 |
| Switching Capacity At 250 V AC, Cos φ = 0.6 (A) | 12 |
| Switching Capacity At 250 V AC, Cos φ = 1 (A) | 16 |
| Switching Output | Potential-Free And Phase-Independent |
| Type of Connection | DuoFix Spring Terminals |
| Type of Contact | Changeover Contact |
| Type of Protection | IP 20 |
