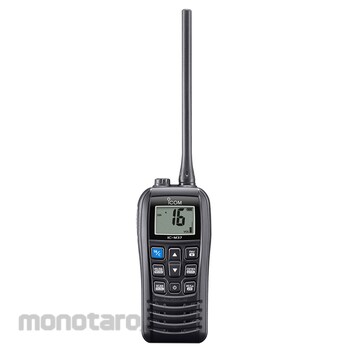

Icom VHF Marine Transceiver
#Grup produk P107631356
Spesifikasi
| Frequency Range (MHz) | Tx 156.025–157.425 , Rx 156.050–163.275 |
|---|---|
| Usable Channels | groups INT, USA, CAN, WX channels |
| Type of Emission | 16K0G3E |
| Current Drain | Tx 2.75 A Rx (Internal SP/External SP) 400 mA/200 mA (Max. audio) |
| Operating Temperature Range (°C) | - 20 to +60 (-4°F to +140°F) |
| Adjacent Channel Power (dB) | 70 |
| Adjacent Channel Selectivity (dB) | 70 |
| Antenna Impedance (ohm) | 50 |
| Audio Output Power | (at 10% distortion) Internal SP 700 mW typical (8 Ω load) External SP 300 mW typical (4 Ω load) |
| Dimensions (WxHxD) (mm) | Projections not included 59.7x140.5x38.7 (2.4x5.5x1.5inch) |
| Frequency Stability (ppm) | ±10 |
| Intermodulation (dB) | 70 |
| Maximum Frequency Deviation (kHz) | ±5 |
| Output Power (W) | 6/1 |
| Sensitivity (μV) | 0.25 typical (at 12 dB SINAD) |
| Spurious Emissions (dBc) | - 68 |
| Spurious Response (dB) | 70 |
| Squelch sensitivity (μV) | 0.25 typical (at threshold) |
