SG24 is a 24-port unmanaged switch.It is a smart high performance gigabit switch that provides an idealsolution for workgroup or department Gigabit applications.With 24 10/100/1000BASE-T (AUTO-MDIX) Gigabit Ethernet ports,this switch can provide full bandwidth up to 2000Mbps in full duplex mode.Also it supports easy-to-view LED indicators for cable installation and normaloperational diagnostics. It can be installed on desktop or in rack-mount.
Package Contents:
SG24 Gigabit Switch, Quick Installation Guide, Power Cord, Brackets, Rubber Feet, Screws

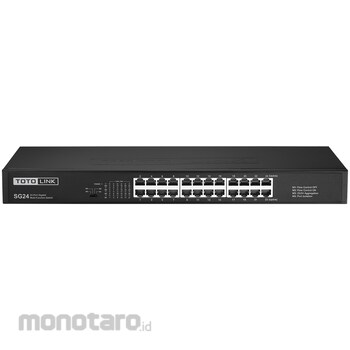

Totolink 24-Port Gigabit Multi-Function Switch
#Grup produk P107047627
Spesifikasi
| Four Working Modes | M1: Flow Control OFF, M2: Flow Control ON, M3: 23/24 Ports Aggregation based on MAC sources, M4: 1,22 Port Isolation, 23-24 Port Uplink. |
|---|---|
| Frame Filtering (pps) | 10Mbps: 14880, 100Mbps: 148800, 1000Mbps: 1488000 |
| MAC Address Learning | Auto-learning, auto update |
| Mac Address Table | 8K |
| Network Media | 10BASE-T: UTP Cat 3, 4, 5 cable, 100BASE-TX/1000BASE-T: UTP Cat 5, 5e or above cable |
| Power Supply (V) | AC 100-240 |
| Dimensions (LxWxH) (mm) | 440x180x44 |
| Interface | 24x 10/100/1000Mbps auto-negotiation RJ-45 Ports (Auto MDI/MDIx ) |
| LED Indicator | 1x Power, Link/Act (1~24), M1~M4 |
| Standard & Protocol | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x |
| Switching Capacity (Gbps) | 48 |
| Transmission Method | Store and Forward |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Complies with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x standards.24 10/100/1000Mbps auto-negotiation ports.Supports flow control for each port.Supports store and forward switching scheme capability.Supports NWay auto-negotiation for all ports.Supports auto MDI/MDIX for each port.Supports per-port bandwidth control.Supports PHY register read/write access.Ulasan Produk
