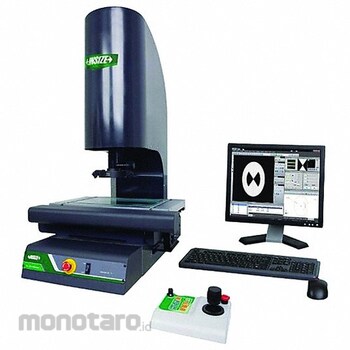

Insize CNC Vision Measuring System
#Grup produk P105871507
Spesifikasi
| Includes | Computer |
|---|---|
| Data Output Type | Cable |
| Digital Zoom | 0.7x to 4.5x |
| Display Accuracy | (98.4+10L)uin |
| Focusing Travel (inch) | 5.90625 |
| Illumination | Adjustable LED Light |
| Image Detecting Unit | 1/2 in Color CCD, 0.4M Pixel |
| Image Type | Erect |
| Magnification System | 20X-128X (on 19.5 in Monitor) |
| Maximum Workpiece Height (inch) | 6.3 |
| Measuring Accuracy | (98.4+10L)uin |
| Measuring Range | 10.63inchx6.69inchx5.90inch |
| Observation Unit Zoom | 4.5X |
| Optical System Magnification | 33 to 195X |
| Optical System Working Distance (inch) | 3.625 |
| Stage Glass Size (inch) | 13.78x9.84 |
| Vision Measuring System Type | CNC |
| X-Axis Measuring Range (inch) | 10.625 |
| Y-Axis Measuring Range (inch) | 6.703125 |
| Z-Axis Measuring Range (inch) | 5.90625 |
