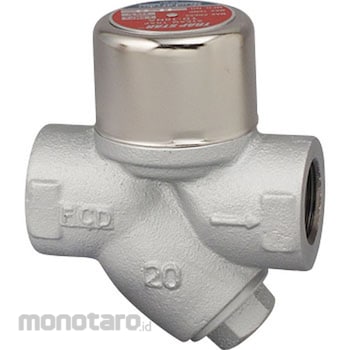

Yoshitake Steam Trap (Screw-In Type) Td-10Na Series
#Grup produk P103662109
Sebelum PPN:
Rp3.799.900 - Rp3.899.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Back Pressure Tolerance | 50% or less of inlet pressure |
|---|---|
| Applicable Fluid | Steam drain |
| format | Disk type |
| Flow Direction | Horizontal -> horizontal, upper <-> lower |
| Applicable Pressure Range (MPa) | 0.035-2.0 |
| Body Material | Spheroidal graphite cast iron (FCD450) |
| Color | Silver |
| Connection | JIS Rc |
| Dimension L (mm) | 90 |
| Material (Valve Seat) | Stainless steel (special heat treatment) |
| Material (disk) | Stainless steel (special heat treatment) |
| Maximum Temperature (°C) | 220 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
Stable operation with air warming. Excellent durability and maintainability. Warm-up is greatly reduced.Ulasan Produk
