It is a straight road system in which a ball case is precision press molded and a slider incorporating a ball moves in an infinite linear motion. Lightweight, compact and light linear motion can be obtained by using in combination with slide rail. (High corrosion resistance) We adopted an austenitic stainless steel material for rail, mounting plate, stopper and other parts, realizing high corrosion resistance. (Noise Reduction) By newly designing the slider part, we achieved 5 dBA noise reduction compared to conventional products.
Useable: Ideal for light load sliding parts such as copiers, tool cabinets, various electronic equipment cabinets, vending machines, slide covers for machine tools, cash registers and curtain walls.

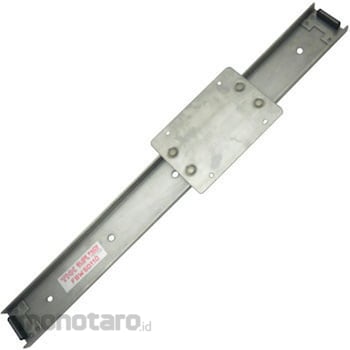

THK Slide Pack FBW 2560 XR Type 2 Sliders
#Grup produk P102543427
Spesifikasi
| Material (stopper) | SUS430+NBR |
|---|---|
| Set Contents | 1 slide rail, 2 sliders |
| Maximum Allowable Load | (Pa) 590, (Pb) 150, (Pc) 70N |
| Ball Material | SUS440C |
| Body Material | (Slide rail, mounting plate) SUS304 |
| Case Material | (Ball Case) SPCE |
| Dimension B | 3mm |
| Dimension G | 40mm |
| Dimension L0 | 960mm |
| Dimension N1 | 11mm |
| Stroke | 888mm |
