The ultimate insert with low chatter and quiet cutting noise.
The uniquely developed "double-sided Z-shaped" insert combines the features of conventional positive and negative inserts, achieving low resistance and sharpness even though it is a negative (double-sided) insert.
WSX445 has a low resistance design comparable to positive (single-sided) inserts. In particular, it shows a low resistance value for back force.
Chips are formed in a spiral shape and are discharged to the outside of the cutter. This has the effect of preventing chips from getting caught and scratching the cutter body.
* Wet cutting is recommended when the finished surface is important. (Life is shorter than dry cutting.)

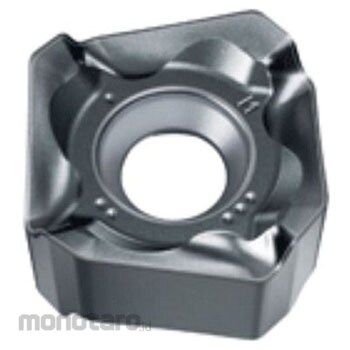

Mitsubishi Materials Insert with breaker for WSX445 type SNGU140812ANER-L MX3030 1box(10pcs)
Rp2.599.900
Persediaan
Spesifikasi Produk
| Model Number | SNGU140812ANER-L MX3030 |
|---|---|
| Unit | 1box(10pcs) |
| Material | Cemented carbide |
| Accuracy | G |
| Right or Left Hand | Right hand |
| Finish processing | Application: Machining difficult-to-cut materials, when the rigidity of the machine or workpiece is low |
| Mounting Hole Diameter (mm) | Insert: 5.12 |
| Chip breaker | L |
| Square Size (mm) | 1.2 |
| Number of Corners to Use | (possible)8 |
| Honing | E (maru honing) |
| Grade | MX3030 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Insert Thickness (mm) | 8.4 |
| Dimension S10 (mm) | 6.3 |
| Wiper blade Width (mm) | 1.5 |
| Inscribed circle IC(mm) | 14 |
| M Code | 62712380 |
| Berat (Kg) | 0.2 |
| Tanggal Produk Terdaftar | 29 November 2024 |
| Terakhir Diperbaharui | 01 December 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
*Wet cutting is recommended if the finished surface is important. (The lifespan will be shorter compared to dry cutting.)Feature
The ultimate insert with low chatter and quiet cutting noise. The uniquely developed "double-sided Z-shaped" insert combines the features of conventional positive and negative inserts, achieving low resistance and sharpness even though it is a negative (double-sided) insert.
WSX445 has a low resistance design comparable to positive (single-sided) inserts. In particular, it shows a low resistance value for back force.
The chips are formed in a spiral shape and are discharged to the outside of the cutter. This has the effect of preventing chips from getting caught and scratching the cutter body.
