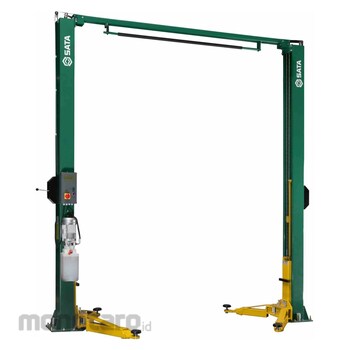

SATA Widened Manual Gantry Lift AE5102 4t (220V) 1pc

Name: SATA Widened Manual Gantry Lift AE5102 4t (220V) 1pc
Brand: SATA
SKU: S044407551
Price: 62999900 IDR
Availability: InStock

#Nomor SKU S044407551

SATA

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	AE5102
Unit	1pc
Voltage (V)	220
Rated Load (t)	4
Minimum Height (mm)	95
Lifting Height (mm)	1990
Rated Load Rise Time (s)	60
Rated Load Drop Time (s)	50
Motor Power (kW)	2.2
Motor Housing	Aluminium Alloy
Machine Height (mm)	3900
Column Inner Width (mm)	3000
Bottom Plate Width (mm)	3580
Pallet Thread	3 sections 70mm adjustable
Pallet Heightening Sleeve (mm)	70
Bracket Type	2+3 straight arms
Electronic Control Method	24V safety voltage control box (standard)
Bottom Plate Fixing Holes	16pcs
Unlock Method	Manual single side
Berat (Kg)	1.1
Tanggal Produk Terdaftar	13 November 2024
Terakhir Diperbaharui	02 August 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

- Manual unlocking on one side, automatic reset when hands are removed
- The oil cylinder is directly driven to avoid the potential safety hazard of chain breakage
- Standard tray heightening cover, suitable for SUV models
- The slide is extended to 1950mm to improve strength
- The number of sliders increased from 2 to 3, increasing the force-bearing area and improving stability.
- The slide is welded with 16mm steel plate to improve strength
- The bracket arm safety lock adopts a bevel tooth design to ensure that the gears fit tightly
