- Manual unlocking on one side, automatic reset when hands are removed
- The oil cylinder is directly driven to avoid the potential safety hazard of chain breakage
- Standard tray heightening cover, suitable for SUV models
- The slide is extended to 1950mm to improve strength
- The number of sliders increased from 2 to 3, increasing the force-bearing area and improving stability.
- The slide is welded with 16mm steel plate to improve strength
- The bracket arm safety lock adopts a bevel tooth design to ensure that the gears fit tightly

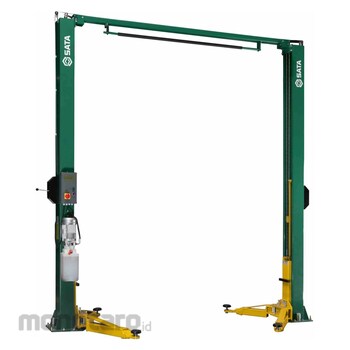

SATA Widened Manual Gantry Lift
#Grup produk P111135318
Kondisi Barang:
Authorized Partner
Spesifikasi
| Bottom Plate Fixing Holes | 16pcs |
|---|---|
| Bottom Plate Width (mm) | 3580 |
| Bracket Type | 2+3 straight arms |
| Column Inner Width (mm) | 3000 |
| Electronic Control Method | 24V safety voltage control box (standard) |
| Lifting Height (mm) | 1990 |
| Machine Height (mm) | 3900 |
| Minimum Height (mm) | 95 |
| Motor Housing | Aluminium Alloy |
| Motor Power (kW) | 2.2 |
| Pallet Heightening Sleeve (mm) | 70 |
| Pallet Thread | 3 sections 70mm adjustable |
| Rated Load (t) | 4 |
| Rated Load Drop Time (s) | 50 |
| Rated Load Rise Time (s) | 60 |
| Unlock Method | Manual single side |
| Voltage (V) | 220 |
