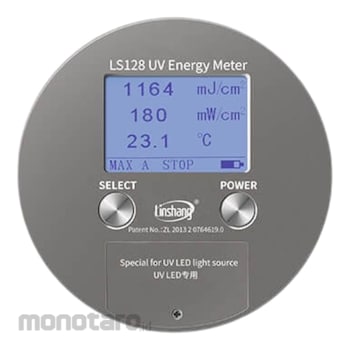

Linshang UV Energy Meter LS128 1unit

Two measurement modes available
There are two measurement modes. One is Manual mode which needs to start up or end of measurement manually. Another is automatic modes that can automatic switch-on or end of measurement when the energy intensity emitted by the light source is above or below the trigger threshold that can be set.

Four interfaces help you record the data of UV light source
There are four interfaces to help you know better about UV light source you tested: In maximum values interface, you can acquire cumulative energy value, maxiumum power value and maximum temperature value. Measurement time can be recorded in RT interface. In temperature and power curve interface, you can know the temperature change and energy intensity variation of the light source. Four interfaces can be switched freely.

Wide spectral response range
With wide spectral response range, the UV power puck can test UV LED light source with any peak in the range of 340nm-420nm.

Powerful PC software
The LS128 UV Energy Meter can be connected to PC software, which allows you to generate reports and print out test results, as well as to export test data.

Temperature measurement possible
The high-precision and fast-response temperature detector is used to measure the actual temperature in the curing machine.

High temperature resistant
High temperature resistant design with built-in heat insulation sheet, it can run in the environment of 100 degrees Celsius for a long time. Click for more: Use Time of Linshang UV Energy Meter at Different High Temperature.

- High-speed data acquisition of 2048 times/sec, more accurate measurement
- Built-in timer can accurately record the UV curing time
- The stored data will not lost when the power is turned off
