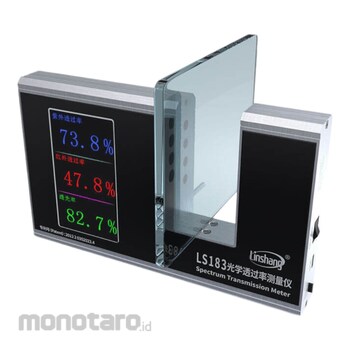

LS183 spectrum transmission meter employing the parallel light path source. is mainly used for the optical performance test of thermal insulation coatings, single-layer glass, laminated glass (insulating glass), glass with film, PMMA, PC and other materials. It can simultaneously test the transmittance of ultraviolet, infrared and visible light. The width of the test slot is 47mm. The meter uses ultraviolet light source, infrared light source and visible light source to illuminate the tested transparent material. The sensor determines the transmittance by detecting the original light intensity emitted by the three light sources and the transmitted light intensity after the light has passed through the transparent material. The final result is expressed as a percentage.
Content:
LS183 Spectrum Transmission Meter 1 pcs
DC5V Adapter 1 pcs
User Manual 1 pcc
Support pillar 1 pcs
Packing box dimension 34x29x9cm(LxWxH) 1 pcs
Linshang Spectrum Transmission Meter LS183 1unit
Rp16.999.900
Persediaan
Spesifikasi Produk
| Model Number | LS183 |
|---|---|
| Unit | 1unit |
| IR Peak Wavelength (nm) | 940 |
| Measurement Accuracy | ± 2%(colorless and uniform transparent materials) |
| Power Supply (V/A) | DC5/1 |
| Resolution (%) | 0.1 |
| UV Peak Wavelength (nm) | 365 |
| Dimensions (LxWxH) (mm) | 216x134x29 |
| Test Sample Thickness (mm) | <47 |
| Test Slot Dimensions (mm) | 47x91 |
| Visible Light Peak Wavelength (nm) | 380-760 (conform to CIE photopic luminosity function) |
| Berat (Kg) | 5.3 |
| Tanggal Produk Terdaftar | 25 September 2024 |
| Terakhir Diperbaharui | 27 May 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Measure UV, IR and visible light simultaneousLS183 optical transmittance tester can measure ultraviolet, infrared and visible light simultaneous.
Having it is equal to having UV transmittance meter, IR transmittance meter and light transmittance meter at the same time.
Easy to operate, Quick to measure
The UV transmission meter has simple operation and fast measurement. We just need to put the measured sample into the test slot and the three test results will be displayed on the interface immediately at the same time.
Parallel optical path design ideal for measuring large thick materials
The instrument use parallel light path source which can test materials with large thickness.
Three display interfaces switchable
The spectrum transmission meter has large LCD display, three different display interfaces can be switched.
Real-time dynamic self-calibration
The instrument has real-time dynamic self-calibration function, which automatically calibrates to 100% transmittance after powering on.
Provide free support pillar for relaxing reading
Supporting pillar in the packing makes it more convenient on the data reading.
