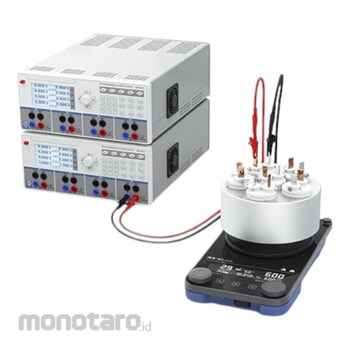

Ika Laboratories Screening System 40003631 Package (6 Cells) 1set

The IKA Screening System is particularly suitable for constant current electrosynthesis in “multibatch” mode. The package with 6 divided batch cells allows you to quickly conduct research on several electroconversions simultaneously. In addition, you can combine the system with other equipment in the laboratory.
Six divided cells can be operated in parallel in the Screening System, if a double cell is used.
These divided reaction cells consist of reaction blocks, which require separate electrode compartments.
These are connected by glass frits. Thus, the electrochemical reaction takes place, but the reaction fluids remain separate. That prevents the mixture of oxidized and reduced fluids.
This is of particular interest if the formed product is unstable with respect to the counter electrode.

Up to 6 divided cells can be operated simultaneously and individually
Synthesize sufficient quantities for GC, LC or NMR analysis processes.
Separate controls and presets for each cell
Easy testing to run identical or different electrolysis
Quick identification of ideal process parameters
Digital recording of test parameters
Simultaneous mixing and heating
Full temperature control (PT 1000) using heat block
Control and automation through Labworldsoft 6.0
Saving time and resources


Scope of delivery
Divided Cells (6 pcs.)
Aluminum block 6 cells
IKA Plate (digital RCT)
Crown stirrer (12 pcs.)
H 16 V Support rod
H 38 Holding rod
H 44 Boss head clamp
Set of cables with crocodile clamps (Channel 1-4)
Set of cables with crocodile clamps (Channel 5-8)
Power Supply (2 pcs.)
Graphite Electrodes (12 pcs.)
