OMRON Mini Power Relay MY2N AC220/240 1pc
Rp219.900
Persediaan
Spesifikasi Produk
| Model Number | MY2N AC220/240 |
|---|---|
| Unit | 1pc |
| Number of Pins | 8 |
| Number of Poles | 2 |
| Contact Configuration | 2c |
| Coil Rated Voltage (V) | AC220/240 |
| CR Circuit | None |
| Mass (g) | About 35 |
| Operation Indicator | LED |
| Protection Class | In a case |
| Shape | MY2N |
| With or Without Diode | None |
| Classification | Built-in operation indicator |
| Contact Resistance (miliΩ) | 50 or less (DC5V 1A voltage drop method) |
| Ambient Operating Temperature (°C) | -55 to 60 (no freezing or condensation) |

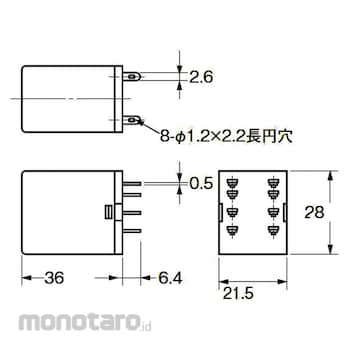

| Outer Dimensions, Width WxDepth DxHeight H (mm) | 21.5 or lessx28 or lessx36 or less |
| Terminal Shape | Plug-in terminal |
| Terminal Structure | Plug-in terminal |
| Type | Relay for control panel |
| Type of Connection | Standard type |
| Vibration Resistance (Destruction) | 10 to 55 to 10 Hz, single amplitude 0.5 mm (double amplitude 1.0 mm) |
| Insulation Resistance (MΩ) | 100 or more (measured with the DC500V insulation resistance meter at the same location as the withstand voltage) |
| M Code | 39088445 |
| Berat (Kg) | 0.1 |
| Tanggal Produk Terdaftar | 30 August 2024 |
| Terakhir Diperbaharui | 15 August 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Eliminates the use of lead and supports environmental protection. Obtained additional VDE standard (Germany) and IMQ standard (Italy). By changing the color of the AC / DC coil tape, the distinguishability of AC / DC specifications is improved.
