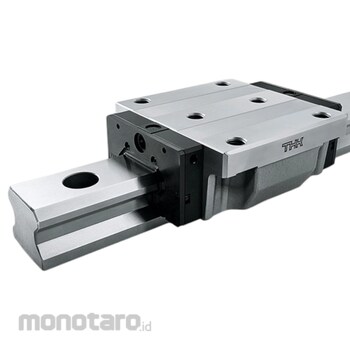

THK Block and Rail HSR15R Series HSR15R3SS+220L G20/20 220mm 1pc

Name: THK Block and Rail HSR15R Series HSR15R3SS+220L G20/20 220mm 1pc
Brand: THK
SKU: S042909439
Price: 4699900 IDR
Availability: InStock

#Nomor SKU S042909439

THK

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	HSR15R3SS+220L G20/20
Unit	1pc
Type of LM Block	R
No. of LM Blocks Used on The Same Rail	3
Lubrication and Dust Prevention Accessories	with End Seal + Side Seal + Inner Seal
LM Rail Length (mm)	220
Size G (mm)	20/20
Outer Dimensions MxWxL (mm)	28x34x56.6
LM Block Dimensions B (mm)	26
LM Block Dimensions C (mm)	26
LM Block Dimensions Sxl (mm)	M4x5
LM Block Dimensions L₁ (mm)	38.8
LM Block Dimensions TxKxNxE (mm)	6x23.3x8.3x5.5
Grease Nipple	PB1021B
Pilot Hole for Side Nipple e₀xf₀xD₀ (mm)	3.2x7.9x3
LM Rail Dimensions Width W₁ ±0.05 (mm)	15
LM Rail Dimensions Height M₁ (mm)	15
LM Rail Dimensions Pitch P (mm)	60
LM Rail Dimensions d₁xd₂xh (mm)	4.5x7.5x5.3
Basic Load Rating C-C₀ (kN)	10.9-15.7
Static Permissible Moment (MA) (kN.m)	1 Block = 0.0945; Double Blocks = 0.527
Static Permissible Moment (MB) (kN.m)	1 Block = 0.0945; Double Blocks = 0.527
Berat (Kg)	0.5
Tanggal Produk Terdaftar	26 July 2024
Terakhir Diperbaharui	27 May 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

With this type, the LM block has a smaller width (W) and tapped holes. Used in places where the space for table width is limited.

Warning

Image on this page only as Representative Image, Please check the specifications of each size and color for details
