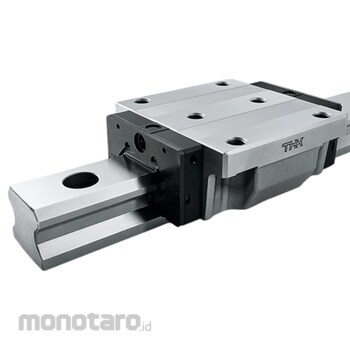

THK Block and Rail HSR15R Series
#Grup produk P110174879
Sebelum PPN:
Rp1.199.900 - Rp17.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Type of LM Block | R |
|---|---|
| Size G (mm) | 20/20 |
| Outer Dimensions MxWxL (mm) | 28x34x56.6 |
| Basic Load Rating C-C₀ (kN) | 10.9-15.7 |
| Grease Nipple | PB1021B |
| LM Block Dimensions B (mm) | 26 |
| LM Block Dimensions C (mm) | 26 |
| LM Block Dimensions L₁ (mm) | 38.8 |
| LM Block Dimensions Sxl (mm) | M4x5 |
| LM Block Dimensions TxKxNxE (mm) | 6x23.3x8.3x5.5 |
| LM Rail Dimensions Height M₁ (mm) | 15 |
| LM Rail Dimensions Pitch P (mm) | 60 |
| LM Rail Dimensions Width W₁ ±0.05 (mm) | 15 |
| LM Rail Dimensions d₁xd₂xh (mm) | 4.5x7.5x5.3 |
| Pilot Hole for Side Nipple e₀xf₀xD₀ (mm) | 3.2x7.9x3 |
| Static Permissible Moment (MA) (kN.m) | 1 Block = 0.0945; Double Blocks = 0.527 |
| Static Permissible Moment (MB) (kN.m) | 1 Block = 0.0945; Double Blocks = 0.527 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
With this type, the LM block has a smaller width (W) and tapped holes. Used in places where the space for table width is limited.
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for detailsUlasan Produk
