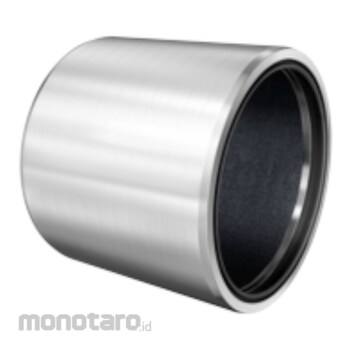

INA Bush ZGB Type ZGB40X48X40A 1pc

Name: INA Bush ZGB Type ZGB40X48X40A 1pc
Brand: INA
SKU: S042056751
Price: 1099900 IDR
Availability: OutOfStock

#Nomor SKU S042056751

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	ZGB40X48X40A
Unit	1pc
Inner Diameter, Upper Tolerance (Di OT) (mm)	0.039
Outside Diameter, Lower Tolerance (Do UT) (mm)	0.026
Chamfer Angle Outside Diameter (f) (°)	15
Outer Chamfer (f) (mm)	2
Inner Edge Break, Max. (Fi max) (mm)	0.9
Inner Edge Break, Min. (Fi min) (mm)	0.3
Outside Diameter, Upper Tolerance (Do OT) (mm)	0.051
Inner Edge Break, Lower Tolerance (FiUT) (mm)	-0.3
Inner Edge Break, Upper Tolerance (FiOT) (mm)	0.3
Minimum Operating Temperature (Tmin) (°C)	-50
Maximum Operating Temperature (Tmax) (°C)	150
Width B (mm)	40
Basic Dynamic Load Rating, Radial (Cr) (N)	480K
Basic Static Load Rating, Radial (C0r) (N)	480K
Chamfer Angle Bore Diameter (f) (°)	45
Inner Diameter, Tolerance (Di T)	H8
Outer Diameter, Tolerance (Do T)	p7
Inner Diameter (di) (mm)	40
Outer Diameter do (mm)	48
Berat (Kg)	0.1
Tanggal Produk Terdaftar	06 May 2024
Terakhir Diperbaharui	27 May 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

ELGOGLIDE plain bush, maintenance-free, DIN ISO 4379

Warning

- The photo is only a reference (illustration) according to its function
- Product color refers to the product name and specifications listed on the website
- Products received will be in accordance with the information listed on the website.
