INA Bush ZGB Type
#Grup produk P110027845
Spesifikasi
| Inner Diameter, Upper Tolerance (Di OT) (mm) | 0.039 |
|---|---|
| Outside Diameter, Lower Tolerance (Do UT) (mm) | 0.026 |
| Chamfer Angle Outside Diameter (f) (°) | 15 |
| Outer Chamfer (f) (mm) | 2 |
| Inner Edge Break, Max. (Fi max) (mm) | 0.9 |
| Inner Edge Break, Min. (Fi min) (mm) | 0.3 |
| Basic Dynamic Load Rating, Radial (Cr) (N) | 480K |
| Basic Static Load Rating, Radial (C0r) (N) | 480K |
| Chamfer Angle Bore Diameter (f) (°) | 45 |
| Inner Diameter (di) (mm) | 40 |
| Inner Diameter, Tolerance (Di T) | H8 |
| Inner Edge Break, Lower Tolerance (FiUT) (mm) | -0.3 |
| Inner Edge Break, Upper Tolerance (FiOT) (mm) | 0.3 |
| Maximum Operating Temperature (Tmax) (°C) | 150 |
| Minimum Operating Temperature (Tmin) (°C) | -50 |
| Outer Diameter do (mm) | 48 |
| Outer Diameter, Tolerance (Do T) | p7 |
| Outside Diameter, Upper Tolerance (Do OT) (mm) | 0.051 |
| Width B (mm) | 40 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

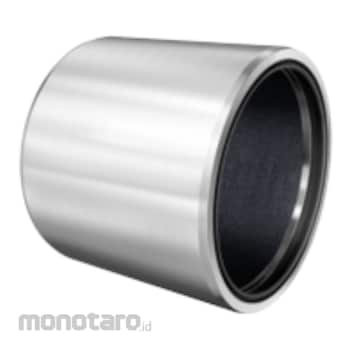

ELGOGLIDE plain bush, maintenance-free, DIN ISO 4379
Warning
- The photo is only a reference (illustration) according to its function- Product color refers to the product name and specifications listed on the website
- Products received will be in accordance with the information listed on the website.
