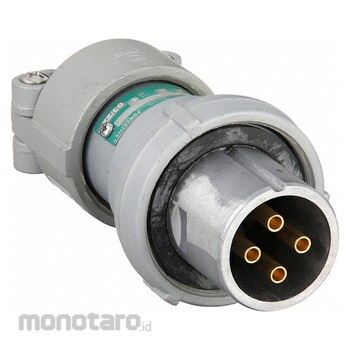

APPLETON ELECTRIC Pin and Sleeve Plug ACP3044BC 30 A, 250V DC/600V AC 4Pl 1pc
Rp11.999.900
Persediaan
Spesifikasi Produk
| Model Number | ACP3044BC |
|---|---|
| Unit | 1pc |
| UNSPSC | 39121402 |
| Cap Type | Screw-On Cap |
| Compatible with Series | DBR; EBR; EBRH; FSQC; ID2SR; JBR; MD2SR |
| Connection Orientation | Straight |
| Current Rating (A) | 30 |
| Face Diameter (inch) | 1.86 |
| For Max. Cable Diameter (inch) | 1.125 |
| For Min. Cable Diameter (inch) | 0.5 |
| Grounding | Grounded |
| Grounding Style | Style 1 |
| Horsepower Rating (hp) | 40 |
| Housing Color | Gray |
| Housing Material | Copper-Free Aluminium |
| Housing Material Finish | Epoxy Coat with Powder Finish |
| Insulation Material | Fiberglass-Reinforced Polyester |
| Max. Wire Size (AWG) | 8 |
| Min. Wire Size (AWG) | 10 |
| Minimum/Maximum Operating Temperature (°C) | -25 to 40 |
| Number of Poles | 4 |
| Number of wires | 4 |
| Outside Diameter (inch) | 3.13 |
| Overall Length (inch) | 6 |
| Phase | Three |
| Polarized | No |
| Resistance Properties | Fire Resistant; Heat Resistant |
| Reverse Service | No |
| Standards | CSA Certified 065179; CSA Certified C22.2 No. 182.1-13; cULus E145917 (200 Amp); UL 1682; UL 50E; UL E145916; UL E145917 |
| Switch Rated | No |
| Voltage Rating (V) | 250 (DC); 600 (AC) |
| Wire Connection Type | Wire Leads |
| Berat (Kg) | 0.8 |
| Tanggal Produk Terdaftar | 05 April 2024 |
| Terakhir Diperbaharui | 14 September 2026 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These switch-rated pin-and-sleeve plugs disconnect motor connections and branch circuits while under load without needing an interlock or auxiliary safety switch. Typical uses include supplying power to industrial equipment, welding machines, and electric motors.
Peringatan
Catatan Penting: Tanpa GaransiProduk ini adalah barang original yang didatangkan langsung dari luar negeri. Karena statusnya sebagai produk impor, tidak tersedia garansi baik dari produsen maupun dari distributor lokal. Kami memastikan bahwa barang telah melalui pengecekan kualitas sebelum dikirim kepada Anda, namun segala risiko kerusakan atau cacat produk setelah pembelian menjadi tanggung jawab pembeli.
Dengan melakukan pembelian, Anda dianggap telah memahami dan menyetujui kondisi ini. Harap berhati-hati dan pertimbangkan dengan matang sebelum melakukan pembelian.
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for details
