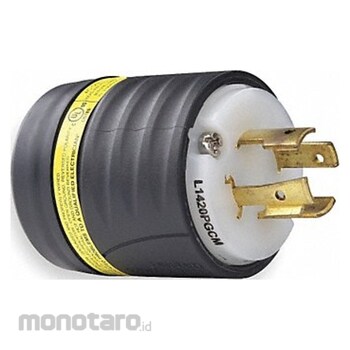

Legrand Industrial Locking-Blade Plug (Steker Putar Kunci) L1420PGCM L14-20P, 125/250V AC Grnd Mntring 20A Nyl 4Blds Black/White 1pc
Rp1.499.900
Persediaan
Spesifikasi Produk
| Model Number | L1420PGCM |
|---|---|
| Unit | 1pc |
| UNSPSC | 39121403 |
| Blade Material | Brass |
| Current Rating (A) | 20 |
| Face Diameter (inch) | 1.358 |
| For Max. Cable Diameter (inch) | 1.15 |
| For Min. Cable Diameter (inch) | 0.225 |
| Grade | Federal Specification |
| Grounding | Grounded |
| Housing Color | Black; White |
| Housing Material | Nylon |
| Market | Industrial |
| Max. Wire Size (AWG) | 10 |
| Min. Wire Size (AWG) | 18 |
| Minimum/Maximum Operating Temperature (°C) | -40 to 75 |
| NEMA Plug Configuration | L14-20P |
| Number of Blades | 4 |
| Number of Poles | 3 |
| Outside Diameter (inch) | 1.516 |
| Overall Length (inch) | 2.791 |
| Phase | Single |
| Power Indicating Light | Yes |
| Resistance Properties | Chemical Resistant; Impact Resistant |
| Reverse Service | Yes |
| Shrouded | No |
| Standards | UL Listed |
| Ul 94 Flammability Rating | V-2 |
| Voltage Rating (V) | 125/250 (AC) |
| Wire Connection Type | Screw Terminal |
| Wiring Style | Standard |
| Berat (Kg) | 1.9 |
| Tanggal Produk Terdaftar | 05 April 2024 |
| Terakhir Diperbaharui | 27 May 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These plugs with ground continuity monitoring (GCM) identify when they experience electrical issues to protect against fires, shocking hazards, and damage to equipment. They have lights that change colors or turn on/off to signal problems with the device's termination, incoming power, and ground continuity. Their terminations have screws that tighten down on conductors to secure them.
Peringatan
Catatan Penting: Tanpa GaransiProduk ini adalah barang original yang didatangkan langsung dari luar negeri. Karena statusnya sebagai produk impor, tidak tersedia garansi baik dari produsen maupun dari distributor lokal. Kami memastikan bahwa barang telah melalui pengecekan kualitas sebelum dikirim kepada Anda, namun segala risiko kerusakan atau cacat produk setelah pembelian menjadi tanggung jawab pembeli.
Dengan melakukan pembelian, Anda dianggap telah memahami dan menyetujui kondisi ini. Harap berhati-hati dan pertimbangkan dengan matang sebelum melakukan pembelian.
