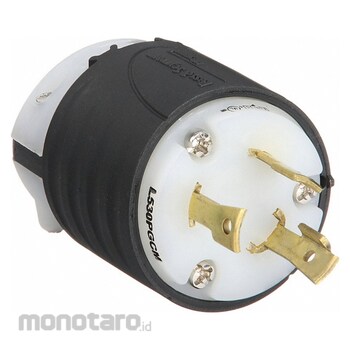

Legrand Industrial Locking-Blade Plug
#Grup produk P109798372
Kondisi Barang:
Authorized Partner
Spesifikasi
| UNSPSC | 39121403 |
|---|---|
| Blade Material | Brass |
| Face Diameter (inch) | 1.358 |
| Grade | Federal Specification |
| Grounding | Grounded |
| Housing Color | Black; White |
| Housing Material | Nylon |
| Market | Industrial |
| Max. Wire Size (AWG) | 10 |
| Min. Wire Size (AWG) | 18 |
| Minimum/Maximum Operating Temperature (°C) | -40 to 75 |
| Outside Diameter (inch) | 1.516 |
| Overall Length (inch) | 2.791 |
| Phase | Single |
| Power Indicating Light | Yes |
| Resistance Properties | Chemical Resistant; Impact Resistant |
| Reverse Service | Yes |
| Shrouded | No |
| Standards | UL Listed |
| Ul 94 Flammability Rating | V-2 |
| Wire Connection Type | Screw Terminal |
| Wiring Style | Standard |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These plugs with ground continuity monitoring (GCM) identify when they experience electrical issues to protect against fires, shocking hazards, and damage to equipment. They have lights that change colors or turn on/off to signal problems with the device's termination, incoming power, and ground continuity. Their terminations have screws that tighten down on conductors to secure them.
Feature
Ground Continuity Monitoring Plug Current Rating 30 A Housing Color Black White Housing Material Nylon NEMA Plug Configuration L5-30P Number of Blades 3 Number of Poles 2 Phase Single Resistance Properties Chemical Resistant Impact Resistant Voltage Rating 125V AC Wire Connection Type Screw Terminals Wiring Style Standard Face Diameter 1.358 in For Maximum Cable Diameter 0.69 in For Minimum Cable Diameter 0.385 in Grade Federal Specification Grounding GroundedDokumentasi Produk
