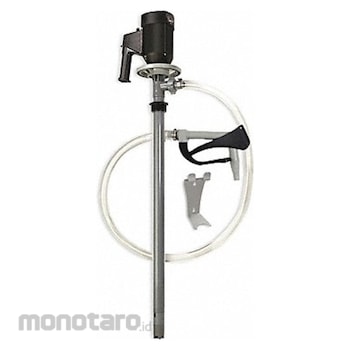

DAYTON Electric Drum Pump 1DLP5 220V 15 gpm 1-1/10HP 1 1/10HP, 55gal 1pc
Rp29.999.900
Persediaan
Spesifikasi Produk
| Model Number | 1DLP5 |
|---|---|
| Unit | 1pc |
| UNSPSC | 40151513 |
| Adapter Connection Type | MNPT |
| Adapter Material | Polypropylene |
| Agency Compliance | CE (Motor Only) |
| Bung Connection Dia. (inch) | 2 |
| Cord Length (ft) | 16 |
| Diesel Exhaust Fluid Compatible | No |
| Discharge Connection Type | Hose Barb |
| Discharge Tube Outlet ID (inch) | 1 |
| Discharge Tube Outlet OD (inch) | 1-1/2 |
| Duty cycle | Intermittent |
| Food Grade | No |
| for Container Size (gal) | 55 |
| For Container Type | Drum |
| For Media Type | Bleach; Calcium Chloride; Citric Acid; Glycerin; Hydrochloric Acid; Nitric Acid; Potassium Hydroxide (50%); Sodium Bicarbonate; Sodium Bisulfate; Sodium Bisulfite; Sodium Hydroxide; Sulfuric Acid; Water |
| For use with | 9431 |
| Frequency (Hz) | 50/60 |
| Full Load Amps (A) | 5 |
| Hose Cover Material | PVC |
| Hose Inside Dia. (inch) | 1 |
| Hose Length (inch) | 72 |
| Hose Outside Dia. (inch) | 1-1/4 |
| Hose Tube Material | PVC |
| Housing Material - Pumps | CPVC |
| Includes Bung Adapter | Yes |
| Includes Discharge Hose | Yes |
| Includes Nozzle | Yes |
| Includes Spout | No |
| Includes Suction Tube | Yes |
| Maximum Flow Rate (GPM) | 15 |
| Maximum Fluid Temperature (°F) | 175 |
| Maximum Head Pump (ft) | 36 |
| Max. Head Pressure (psi) | 16 |
| Max. Oil Flow (gpm) | 7 |
| Max. Outlet Pressure (psi) | 16 |
| Max. Viscosity (CPS) | 1500 |
| Metered | No |
| Motor Enclosure | ODP |
| Motor HP (HP) | 1-1/10 |
| Motor Type | Electric AC Brush |
| Noise Level (dB) | 84 |
| Nominal Voltage (V) | 220 AC |
| Nozzle Material | Polypropylene |
| Nozzle Operation | Manual |
| Number of Phases | 1 |
| Overall Length (inch) | 51 |
| Plug Type | CEE 7/7 |
| Power Source | Electric |
| Pump Package Type | Unmetered Dispensing with Manual Shut-Off |
| Rated Voltage (V) | 220 AC |
| Runs Dry | Yes |
| Seal Material | Sealless |
| Self Priming | Yes |
| Spout Connection Type | Hose Barb |
| Suction Tube Inner Diameter (inch) | 1-3/8 |
| Suction Tube Length (inch) | 39 |
| Suction Tube Material | CPVC |
| Suction Tube OD (inch) | 1-5/8 |
| Thermal Protection | Yes |
| Variable Speed | Yes |
| Wetted Materials | Carbon Graphite; CPVC; Hastelloy C-276; Polypropylene; PVC; PVDF; Viton |
| Manufacturer Part Number | 1DLP5 |
| Display Qty | 1 |
| Display Sell UOM | EA |
| Berat (Kg) | 10.4 |
| Tanggal Produk Terdaftar | 04 April 2024 |
| Terakhir Diperbaharui | 27 May 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Acid, base, and solvent electric drum pumps are made with corrosion-resistant materials that withstand a range of acidic and basic chemical concentrations. They are used to dispense and transfer moderate to large volumes of substances and solutions in laboratories and chemical processing plants.
Peringatan
Catatan Penting: Tanpa GaransiProduk ini adalah barang original yang didatangkan langsung dari luar negeri. Karena statusnya sebagai produk impor, tidak tersedia garansi baik dari produsen maupun dari distributor lokal. Kami memastikan bahwa barang telah melalui pengecekan kualitas sebelum dikirim kepada Anda, namun segala risiko kerusakan atau cacat produk setelah pembelian menjadi tanggung jawab pembeli.
Dengan melakukan pembelian, Anda dianggap telah memahami dan menyetujui kondisi ini. Harap berhati-hati dan pertimbangkan dengan matang sebelum melakukan pembelian.
Feature
Not Recommended Chemicals :Acetic Acid (Glacial); Acetic Acid 20%; Acetic Acid 80%; Acetone; Ammonia (Liquids); Ammonium Hydroxide; Chromic Acid 30%; Chromic Acid 50%; Cyclohexane; DEF; Ethyl (Ethanol); Ethyl Acetate; Ethylene Glycol; Formaldehyde; Formaldehyde 40%; Formic Acid; Heptane; Hexane; Hydrofluoric Acid (20%); Hydrofluoric Acid (75%); Hydrofluoric Acid 100%; Isopropyl (Isopropanol); Kerosene; Lacquer Thinners; Methyl (Methanol); Methyl Chloride; Methyl Ethyl Ketone (MEK); Nitric Acid (20% Solution); Nitric Acid (50% Solution); Nitric Acid (Concentrated Solution); Phosphoric Acid (40% Solution); Stoddard Solvent (Mineral Spirits); Sulfuric Acid (75% - 100%); Toluene; Trichlorethylene (50%); Xylene
Use
Compatible Chemicals :_x000D_Calcium Chloride; Citric Acid 50%; Deionized Water; Fresh Water; Glycerin; Hydrochloric/Muriatic Acid (100%); Hydrochloric/Muriatic Acid (20%); Hydrochloric/Muriatic Acid (37%); Nitric Acid (10% Solution); Potassium Hydroxide (50%); Salt Water; Sodium Bicarbonate (10%); Sodium Bisulfate; Sodium Bisulfite; Sodium Hydroxide/Caustic Soda (20%); Sodium Hydroxide/Caustic Soda (50%); Sodium Hypochlorite/Bleach (to 20%); Sulfuric Acid (10% - 75%)_x000D_
