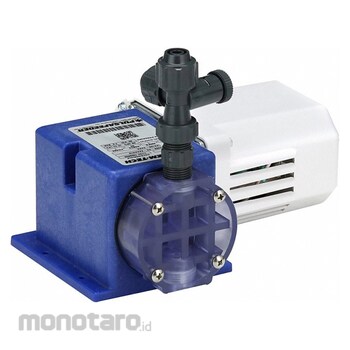

CHEM-TECH Diaphragm Chemical Metering Pump X068XAAAAAG19 Electric Motor, PVC 68gpd 0.50in 1pc
Rp15.999.900
Persediaan
Spesifikasi Produk
| Model Number | X068XAAAAAG19 |
|---|---|
| Unit | 1pc |
| UNSPSC | 41105105 |
| Manufacturer Part Number | X068-XA-AAAAG19 |
| Pump Drive Type | Electric Motor |
| Max. Flow Rate (gpd) | 68 |
| Min. Flow Rate (gpd) | 6.8 |
| Turn Down Ratio | 10:1 |
| Max. Discharge Pressure (psi) | 60 |
| Max. Viscosity (CPS) | 300 |
| Diaphragm Material | CSPE; PTFE; Viton |
| Seal Material | CSPE |
| Housing Material | Styrene Acrylonitrile |
| Head Material | PVC |
| Check Ball Material | Ceramic |
| Fitting Material | PVC |
| Reproducibility (%) | ±5.0 |
| Maximum Media Temperature (°F) | 104 |
| Intake Connection Size (inch) | 1/2 |
| Intake Connection Type | Tube |
| Discharge Connection Size (inch) | 1/2 |
| Discharge Connection Type | Tube |
| Number of Feeds | 1 |
| Control Programs | Manual Control |
| Chemical Compatibility | Ammonium Hydroxide; Antifreeze; Calcium Carbonate; Sodium Hydroxide 20%; Sodium Hypochlorite 5%; Sulfuric Acid 10%; Sulfuric Acid 20%; Sulfuric Acid 30%; Water |
| Duty cycle | Continuous |
| Max. Horsepower (HP) | 1/60 |
| Phase | Single |
| Nameplate Voltage (V) | 115/230 AC |
| Frequency (Hz) | 60 |
| Maximum Motor Speed (rpm) | 51 |
| Cord Length (ft) | 6 |
| Maximum Stroke Rate (stroke/minute) | 51 |
| Includes Degassing Valve | No |
| Includes | Bleed Valve; Foot Valve Strainer with Weight; Injection Back Pressure Valve; Tube |
| Priming | Self-Priming |
| Overall Height (inch) | 7.3 |
| Overall Length (inch) | 8.8 |
| Overall Width (inch) | 7.4 |
| Standards | cETLus Listed; ETL |
| Display Qty | 1 |
| Display Sell UOM | EA |
| Berat (Kg) | 4.2 |
| Tanggal Produk Terdaftar | 04 April 2024 |
| Terakhir Diperbaharui | 27 May 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These diaphragm chemical metering pumps are driven by an electric motor. These pumps have a built-in degassing valve which alleviates built-up pressure from within the housing created by fluids that give off gasses. Motor-driven pumps reach high flow and pressure rates and are more durable and easier to repair than solenoid-driven pumps.
