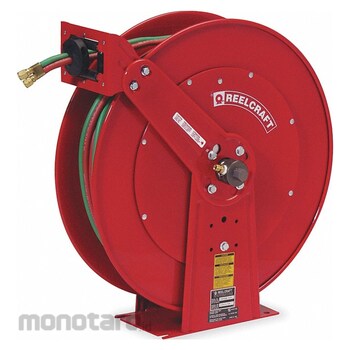

REELCRAFT Welding Hose Reel TW84000OLPT 100ft (1/4 in I.D.), 200 psi Max Op Pressure, T Grade 1pc
Rp25.999.900
Persediaan
Spesifikasi Produk
| Model Number | TW84000OLPT |
|---|---|
| Unit | 1pc |
| UNSPSC | 40142121 |
| Base Motion Type | Stationary |
| Swivel Outlet Thread Size (in) | 9/16 - 18 |
| Swivel Inlet Thread Size (in) | 9/16 - 18 |
| Swivel Material | Aluminium |
| Latch Type | Locking |
| Hose Reel Primary Application | Welding |
| Overall Width | 12-1/4 |
| Reel Width | 12-1/4 |
| Overall Height | 25-3/8 |
| Mount Base Width | 7-3/8 |
| Reel Material | Steel |
| Minimum Operating Temperature (°F) | -40 |
| Swivel Outlet Size | 9/16 |
| Swivel Inlet Size | 9/16 |
| Bearing Construction | Ball |
| Mount Hole Diameter | 1/2 |
| Hose Capacity (ft) | 100 |
| Maximum Operating Temperature (°F) | 150 |
| Maximum Operating Pressure (psi) | 200 |
| Reel Color | Red |
| Swivel Inlet Type | UNF |
| Swivel Outlet Type | UNF |
| For Dual Hose | Yes |
| Mounting Hole Center to Center Height (in) | 10 |
| Mount Base Height (in) | 12 |
| Overall Length (in) | 24 |
| Reel Diameter (in) | 24 |
| Weight (lbs) | 81 |
| Enclosed | No |
| Includes Hose | No |
| Speed Limited Retraction | No |
| Fasteners Included | No |
| Includes Leader Hose | No |
| Includes | No |
| Mounting Hole Center to Center Width (in) | 6 |
| Features | Double Sealed Special Molded O-Rings Prevent Leakage; Leak Prevention; T-Grade Capability |
| Hose Reel Type | Vehicle Mount Hose Reel; Wall Mount Hose Reel |
| Standards | C.G.A.; R.M.A.; Type V.D.; UL Listed |
| Hose Capacity (in I.D.) | 1/4 |
| Overall Dimensions LxWxH (in) | 24x12-1/4x25-3/8 |
| Reel Finish | Powder Coated |
| Drive Type | Spring Return |
| Berat (Kg) | 41.2 |
| Tanggal Produk Terdaftar | 03 April 2024 |
| Terakhir Diperbaharui | 07 October 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Standard welding spring-return hose reels have an independent dual-swivel design that allows a positive separation of gases with double sealed O-rings to prevent leaks. The dual-swivels are made from aluminum that's hard-coated for wear resistance, and the swivel body and inlet are permanently identified with machined grooves on the gas side to assure proper installation. Reinforced steel construction includes powder-coated finish for corrosion resistance. These low-pressure (up to 500 psi) reels mount on the floor, wall, ceiling, bench, or on trucks, and include an adjustable guide arm. Reels use Grade R (oxygen and acetylene gas) or Grade T (oxygen and fuels) hoses. Welding spring-return reels are used with oxygen and acetylene welding hoses in service bays, fabrication shops, and on welding carts.
