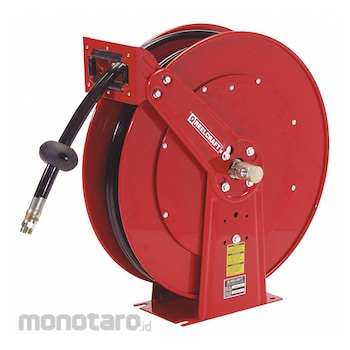

REELCRAFT Oil & Hydraulic Oil Spring-Return Hose Reels TH88050OMP 50 ft (1/2 in I.D.), 1/2 in MNPT x 1/2 in MNPT Dual Spring 1pc
Rp45.999.900
Persediaan
Spesifikasi Produk
| Model Number | TH88050OMP |
|---|---|
| Unit | 1pc |
| UNSPSC | 40142121 |
| Mounting Hole Center to Center Width (inch) | 6 |
| Number of Conductors | - |
| Number of Outlets | 2 |
| Number of Mount Holes | 4 |
| Mounting Hole Center to Center Height (inch) | 10 |
| Mount Base Height (inch) | 12 |
| Overall Length (inch) | 24 |
| Reel Diameter (inch) | 24 |
| Hose 1 Length (ft) | 50 |
| Hose 2 Length (ft) | 50 |
| Enclosed | No |
| Fasteners Included | No |
| Hose Return Speed Control | No |
| Includes Cord | No |
| Includes Leader Hose | No |
| Speed Limited Retraction | No |
| Spiral Hose Guard | No |
| Minimum Operating Temperature (°F) | -40 |
| Maximum Operating Temperature (°F) | 210 |
| Reel Color | Red |
| Hose 1 Fitting A Type | NPT |
| Hose 1 Fitting B Type | NPT |
| Swivel Inlet Type | NPT |
| Swivel Outlet Type | NPT |
| For Dual Hose | Yes |
| Include Hose Stop | Yes |
| Includes Hose | Yes |
| Bearing Construction | Ball |
| Maximum Operating Pressure | 2000 |
| Hose 1 Fitting A Gender | Male |
| Hose 1 Fitting B Gender | Male |
| Swivel Outlet Gender | Male |
| Feeder Cord Ending | None |
| Hose 1 Fitting A Material | Steel |
| Hose 1 Fitting B Material | Steel |
| Hose 1 Color | Black |
| Hose 2 Color | Black |
| Reel Material | Steel |
| Swivel Material | Steel |
| Hose 1 Fitting A Size (inch) | 1/2 |
| Hose 1 Fitting B Size (inch) | 1/2 |
| Hose 1 Inside Diameter (inch) | 1/2 |
| Hose 2 Inside Diameter (inch) | 1/2 |
| Mount Hole Diameter (inch) | 1/2 |
| Swivel Inlet Size (inch) | 1/2 |
| Swivel Outlet Size (inch) | 1/2 |
| Swivel Inlet Gender | Female |
| Hose End Configuration (in MNPT) | 1/2x1/2 |
| Fitting Size (inch) | 1/2x1/2 |
| Latch Type | Locking |
| Seal Material | Nitrile |
| Swivel Inlet Thread Size (in) | 1/2 - 14 |
| Swivel Outlet Thread Size (in) | 1/2 - 14 |
| Hose 1 Outside Diameter (inch) | 13/16 |
| Hose 2 Outside Diameter (inch) | 13/16 |
| Mount Base Width (inch) | 7-3/8 |
| Reel Width (inch) | 8-1/8 |
| Overall Width (inch) | 12-7/8 |
| Overall Height (inch) | 25-3/8 |
| Fitting Type | NPT x NPT |
| Number of Guide Arms | Double Arm |
| Base Motion Type | Stationary |
| Fitting Gender | Male x Male |
| Hose 1 Cover Material | Polyurethane |
| Hose 2 Cover Material | Polyurethane |
| Pedestal Type | Dual Pedestal |
| Hose Reel Primary Application | Hydraulic Oil |
| Drive Type | Spring Return |
| Reel Finish | Powder Coated |
| Includes | Hose; Hose Stop |
| Overall Dimensions LxWxH (in) | 24x12-7/8x25-3/8 |
| Combination Type | Hydraulic/Hydraulic |
| Hose Capacity (ft) | 50 |
| Hose Capacity (in I.D.) | 1/2 |
| Hose 1 Tube Material | Polyester/Polyurethane |
| Hose 2 Tube Material | Polyester/Polyurethane |
| Hose Reel Type | Vehicle Mount Hose Reel; Wall Mount Hose Reel |
| Features | Compact Design For Critical Space Requirements; Constant Tension Positive Latching Spool Mechanism; Declutching Arbor Virtually Eliminates Possibility of Spring Damage Due to Reverse Winding; Long Life Drive Spring |
| Berat (Kg) | 54.0 |
| Tanggal Produk Terdaftar | 02 April 2024 |
| Terakhir Diperbaharui | 07 October 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Twin hydraulic oil spring-return hose reels are used in dual-hydraulic hose applications and are ideal for operating hydraulic cylinders, tools, and equipment. The full-flow, high-volume swivels help deliver maximum hydraulic oil. These corrosion-resistant steel, medium pressure (500-3000 psi) reels mount on the floor, wall, bench, or on trucks, and include adjustable guide arms. These twin hydraulic oil hose reels are used with hoses for hydraulic rescue tools, in emergency situations, and at construction sites.
Peringatan
Catatan Penting: Tanpa GaransiProduk ini adalah barang original yang didatangkan langsung dari luar negeri. Karena statusnya sebagai produk impor, tidak tersedia garansi baik dari produsen maupun dari distributor lokal. Kami memastikan bahwa barang telah melalui pengecekan kualitas sebelum dikirim kepada Anda, namun segala risiko kerusakan atau cacat produk setelah pembelian menjadi tanggung jawab pembeli.
Dengan melakukan pembelian, Anda dianggap telah memahami dan menyetujui kondisi ini. Harap berhati-hati dan pertimbangkan dengan matang sebelum melakukan pembelian.
