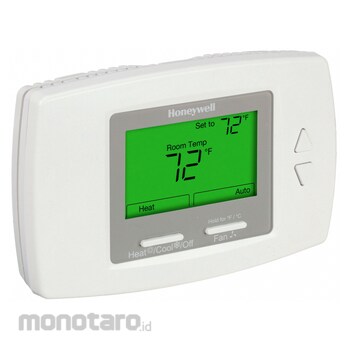

HONEYWELL Nonprogrammable Line-Voltage Thermostats TB6575A1000U Heat and Cool, Auto-Cool-Heat-Off Fan Coil Tstat Digital 2 Or 4 Pipe 1pc
Rp6.599.900
Persediaan
Spesifikasi Produk
| Model Number | TB6575A1000U |
|---|---|
| Unit | 1pc |
| UNSPSC | 41112209 |
| Temperature Differential (°F) | 2 |
| Number of Zones | 1 |
| Number of Relay Inputs | 5 |
| Minimum Control Temperature (°F) | 50 |
| Maximum Control Temperature (°F) | 90 |
| Dehumidification Control | No |
| Dual Transformer Compatible | No |
| Humidification Control | No |
| Includes Positive Off | No |
| Backlit Screen | Yes |
| Key Pad Lockout | Yes |
| Temperature Limiting | Yes |
| Temperature Readout | Yes |
| Differential Type | Fixed |
| Backlit Screen Color | Green |
| Housing Color | White |
| Frequency (Hz) | 50; 60 |
| Standards | UL-873 |
| Contact Rating (VAC) | 120/240 |
| Voltage (V AC) | 120/240 |
| Display Type | Digital |
| Housing Material | Plastic |
| Switch Type | (5) SPST |
| Overall Depth (inch) | 1-1/8 |
| Screen Width (inch) | 2-1/2 |
| Digit Size | Standard |
| Screen Height (inch) | 1-9/16 |
| Shape | Rectangle |
| Overall Height (inch) | 3-13/16 |
| Overall Width (inch) | 5-13/16 |
| Mounting Direction | Horizontal |
| Control Type | Push Button |
| Thermostat Type | Line Voltage |
| Compatible System Type | Fan Coil Unit |
| Application | Heat and Cool |
| Temperature settings per day | Manual Adjust |
| Programming Capability | Not Programmable |
| Includes | Mounting Hardware |
| System Settings | Auto-Cool-Heat-Off |
| Temperature Scale | Celsius/Fahrenheit |
| Fan Settings | Hi-Med-Low-Auto-Off |
| Changeover Type | Automatic and Manual |
| Occupancy Sensor | Compatible with Occupancy Sensor |
| Terminal Designations | GH; GL; GM; L; N; PS; RS; SB; SC; W/Y; Y/A |
| Mounting Location | Junction Box (Vertical); Single Gang Electrical Box (Horizontal) |
| Berat (Kg) | 0.3 |
| Tanggal Produk Terdaftar | 02 April 2024 |
| Terakhir Diperbaharui | 27 May 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These thermostats have a digital display and control temperatures of two- and four-pipe fan coil unit (FCU) systems. FCUs use a coil and fan to heat or cool a room. Indoor air moves over the coil to be heated or cooled before being released into the room. These thermostats allow for multiple settings of the fan's output to gradually heat or cool the room to the desired temperature. They're often installed in hotels, multifamily housing, schools, and other residential and commercial locations. These thermostats are nonprogrammable, so the temperature setting stays the same until it's readjusted.
Peringatan
Catatan Penting: Tanpa GaransiProduk ini adalah barang original yang didatangkan langsung dari luar negeri. Karena statusnya sebagai produk impor, tidak tersedia garansi baik dari produsen maupun dari distributor lokal. Kami memastikan bahwa barang telah melalui pengecekan kualitas sebelum dikirim kepada Anda, namun segala risiko kerusakan atau cacat produk setelah pembelian menjadi tanggung jawab pembeli.
Dengan melakukan pembelian, Anda dianggap telah memahami dan menyetujui kondisi ini. Harap berhati-hati dan pertimbangkan dengan matang sebelum melakukan pembelian.
