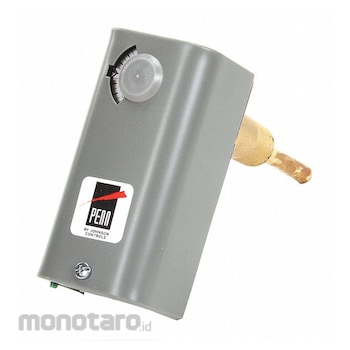

JOHNSON CONTROLS Direct-Immersion Thermowell Temperature Controls (Sensor Thermowell) A19ABC42C Adj, SPDT Temp 24/600V Ac 1pc
Rp6.899.900
Persediaan
Spesifikasi Produk
| Model Number | A19ABC42C |
|---|---|
| Unit | 1pc |
| UNSPSC | 41112209 |
| Full Load Amps @ 240V AC (A) | 6 |
| Number of Cooling Stages | 1 |
| Number of Heating Stages | 1 |
| Number of Poles | 1 |
| Number of switches | 1 |
| Full Load Amps @ 120V AC (A) | 15 |
| Contact Rating Resistive @ 120V (A) | 22 |
| Contact Rating Resistive @ 240V (A) | 22 |
| Contact Rating Resistive @ 277V (A) | 22 |
| Well Connection Size (in NPT) | 1/2 |
| Minimum Control Temperature (°F) | 100 |
| Maximum Operating Temperature (°F) | 140 |
| Maximum Control Temperature (°F) | 240 |
| Enclosure Color | Gray |
| Sensor Type | Bulb |
| Control Type | Knob |
| Switch Type | SPDT |
| Enclosure Material | Steel |
| Sensor Location | Remote |
| Enclosure NEMA Rating | NEMA 1 |
| Enclosure Type | Compact |
| Temperature Differential (°F) | 6 to 24 |
| Voltage (V AC) | 24 to 600 |
| Overall Width (inch) | 2-3/16 |
| Overall Height (inch) | 4-7/16 |
| Differential Type | Adjustable |
| Temperature Scale | Fahrenheit |
| Overall Depth (inch) | 1-13/16 |
| Contact Rating (VAC) | 120; 240; 277 |
| Mounting Type | Surface Mount |
| Pilot Duty Rating (A) | 125 @24/600V AC |
| Electrical Connection Type | Screw Terminals |
| Switch Action | Open/Close on Rise |
| Includes | Remote Sensing Bulb |
| Standards | CSA LR948/4813 02; UL E6688 |
| Thermostat Type | Line Voltage Mechanical Thermostat |
| Compatible System Type | Hot Water Heating Controls Well Immersion LIT-125025 |
| Key Features | Compact Enclosure; Constant Differential Throughout the Entire Range; Unaffected by Cross-Ambient Conditions |
| Berat (Kg) | 0.8 |
| Tanggal Produk Terdaftar | 01 April 2024 |
| Terakhir Diperbaharui | 14 September 2026 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Gravity-tank fill valves allow water to refill the bowl and tank of a gravity-flush toilet after flushing. These inlet valves connect to the plumbing supply line and the tank's float rod. They open when activated by the float rod to allow water in and close when the tank is filled. They're used as replacements for valves that are damaged, clogged, or won't stop the toilet from running.
Peringatan
Catatan Penting: Tanpa GaransiProduk ini adalah barang original yang didatangkan langsung dari luar negeri. Karena statusnya sebagai produk impor, tidak tersedia garansi baik dari produsen maupun dari distributor lokal. Kami memastikan bahwa barang telah melalui pengecekan kualitas sebelum dikirim kepada Anda, namun segala risiko kerusakan atau cacat produk setelah pembelian menjadi tanggung jawab pembeli.
Dengan melakukan pembelian, Anda dianggap telah memahami dan menyetujui kondisi ini. Harap berhati-hati dan pertimbangkan dengan matang sebelum melakukan pembelian.
