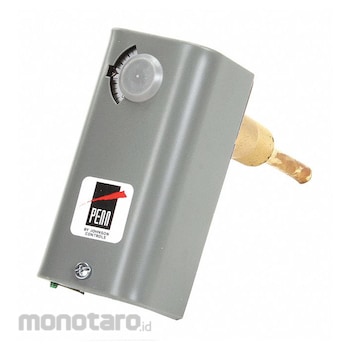

JOHNSON CONTROLS Direct-Immersion Thermowell Temperature Controls
#Grup produk P109404613
Sebelum PPN:
Rp5.999.900 - Rp6.199.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| UNSPSC | 41112209 |
|---|---|
| Compatible System Type | Hot Water Heating Controls Well Immersion LIT-125025 |
| Contact Rating (VAC) | 120; 240; 277 |
| Contact Rating Resistive @ 240V (A) | 22 |
| Contact Rating Resistive @ 277V (A) | 22 |
| Control Type | Knob |
| Differential Type | Adjustable |
| Electrical Connection Type | Screw Terminals |
| Enclosure Color | Gray |
| Enclosure Material | Steel |
| Enclosure NEMA Rating | NEMA 1 |
| Enclosure Type | Compact |
| Includes | Remote Sensing Bulb |
| Key Features | Compact Enclosure; Constant Differential Throughout the Entire Range; Unaffected by Cross-Ambient Conditions |
| Maximum Operating Temperature (°F) | 140 |
| Mounting Type | Surface Mount |
| Number of Cooling Stages | 1 |
| Number of Heating Stages | 1 |
| Number of Poles | 1 |
| Number of switches | 1 |
| Overall Depth (inch) | 1-13/16 |
| Pilot Duty Rating (A) | 125 @24/600V AC |
| Sensor Location | Remote |
| Standards | CSA LR948/4813 02; UL E6688 |
| Switch Action | Open/Close on Rise |
| Switch Type | SPDT |
| Temperature Differential (°F) | 6 to 24 |
| Temperature Scale | Fahrenheit |
| Thermostat Type | Line Voltage Mechanical Thermostat |
| Well Connection Size (in NPT) | 1/2 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Gravity-tank fill valves allow water to refill the bowl and tank of a gravity-flush toilet after flushing. These inlet valves connect to the plumbing supply line and the tank's float rod. They open when activated by the float rod to allow water in and close when the tank is filled. They're used as replacements for valves that are damaged, clogged, or won't stop the toilet from running.
Feature
Line Volt Mechanical Tstat Thermostat Switch Type SPDT Thermostat Control Range 100 Degrees to 240 Degrees F Thermostat Voltage 24 to 600VAC Full Load Amps @ 120VAC 15A Full Load Amps @ 240VAC 6A Thermostat Programmable No Remote Sensing Capability Yes Thermostat Heating/Cooling Heating/Cooling Thermostat Item Line Voltage Mechanical Thermostat Remote Sensing Bulb Included Yes Switch Action Open/Close on Rise Number of Switches 1 Differential 6 Degrees to 24 Degrees FUlasan Produk
