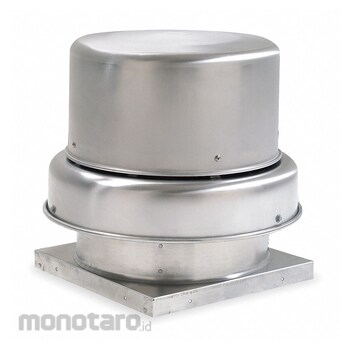

DAYTON Centrifugal Downblast Exhaust Fan (Kipas Sentrifugal) 2RB60 Belt Drive, Includes Drive Pack Alu 25 Dia 26.6 H Roof W.Motor 1pc
Rp21.999.900
Persediaan
Spesifikasi Produk
| Model Number | 2RB60 |
|---|---|
| Unit | 1pc |
| UNSPSC | 40101502 |
| Maximum Static Pressure (in wc) | 1 |
| Number of Speeds | 1 |
| Phase | 1 |
| Spark Resistant Construction Type | A |
| Wheel Diameter (inch) | 11 |
| Base Length (inch) | 19 |
| Base Width (inch) | 19 |
| Frequency (Hz) | 60 |
| High-Efficiency Motor | No |
| Speed Controllable | No |
| Motor Horsepower (HP) | 1/4 |
| Exhaust Airflow @ 0.000 in SP (cfm) | 856 |
| Exhaust Airflow @ 0.125 in SP (cfm) | 821 |
| Exhaust Airflow @ 0.250 in SP (cfm) | 785 |
| Exhaust Airflow @ 0.375 in SP (cfm) | 748 |
| Exhaust Airflow @ 0.500 in SP (cfm) | 710 |
| Maximum Ambient Temperature (°F) | 180 |
| Maximum Inlet Air Temperature (°F) | 180 |
| Includes Drive Package with Motor | Yes |
| Maximum Fan Speed (rpm) | 1710 |
| Mounting Location | Roof |
| Housing Material Fabrication | Spun |
| Damper Size (inch) | 12x12 |
| Compatible Damper Grainger Part Number | 4HX64 |
| Brake Horsepower (hp) | 19/100 |
| Base shape | Square |
| Housing Length (inch) | 24.4 |
| Housing Width (inch) | 24.4 |
| Base Height (inch) | 1-3/4 |
| Housing Material | Aluminium |
| Wheel Material | Aluminium |
| Assembly | Assembled |
| For Air Type | Clean Air |
| Overall Diameter (inch) | 24-3/8 |
| Overall Length (inch) | 24-3/8 |
| Overall Width (inch) | 24-3/8 |
| Overall Height (inch) | 26-5/8 |
| Mount Type | Roof Curb |
| Drive Type | Belt Drive |
| Electrical Connection | Power Cord |
| Nameplate Voltage (VAC) | 115/208-230 |
| Current (A) | 6.2/2.8 to 3.1 |
| Motor Enclosure | Open Dripproof |
| Motor Location | Out of Airstream |
| Wheel Type | Backward Inclined |
| Bearing Type | Sealed Pillow Block |
| Standards | AMCA Sound and Air; CSA; UL/cUL 705 |
| Application | Industrial and Commercial Applications |
| Compatible Curb Grainger Part Number | 2RB75; 2ZV82; 4C453; 4C670; 4HX38; 4HX46 |
| Speed (rpm) | 1725 |
| Berat (Kg) | 33.6 |
| Tanggal Produk Terdaftar | 01 April 2024 |
| Terakhir Diperbaharui | 24 September 2026 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Clean air fans with drive exhaust odorous, hot, or stale air. These fans come with a drive package that includes a motor, sheaves, belts, and bushings. Belt-drive fans are typically quieter and allow for more control over the fans' blade speed and airflow than direct-drive fans.
Peringatan
Catatan Penting: Tanpa GaransiProduk ini adalah barang original yang didatangkan langsung dari luar negeri. Karena statusnya sebagai produk impor, tidak tersedia garansi baik dari produsen maupun dari distributor lokal. Kami memastikan bahwa barang telah melalui pengecekan kualitas sebelum dikirim kepada Anda, namun segala risiko kerusakan atau cacat produk setelah pembelian menjadi tanggung jawab pembeli.
Dengan melakukan pembelian, Anda dianggap telah memahami dan menyetujui kondisi ini. Harap berhati-hati dan pertimbangkan dengan matang sebelum melakukan pembelian.
Feature
Sound Level: 10.5 sones @ 1.000 in SP and 5 ft; 10.6 sones @ 0.875 in SP and 5 ft; 10.9 sones @ 0.750 in SP and 5 ft; 11.2 sones @ 0.625 in SP and 5 ft; 11.5 sones @ 0.500 in SP and 5 ft; 11.9 sones @ 0.375 in SP and 5 ft; 12.1 sones @ 0.250 in SP and 5 ft; 12.3 sones @ 0.125 in SP and 5 ft; 12.5 sones @ 0.000 in SP and 5 ftFeatures: Air Handling Quality Bearings Meet Minimum of L10-100,000 Hours; Features a Fully Rolled Windband Bead for Increased Stability and Easy Transport; Fresh Outside Air is Drawn in Under the Motor Cover to Maximize Motor Life; Nema 1 Junction Box Located in Motor Enclosure; Nonoverloading Centrifugal Wheel Design; Optional Nema 1 and 4 Disconnects Available
